Electrical Wiring Diagrams — Sunbeam Tiger
Complete electrical wiring diagrams for the Sunbeam Tiger Mk I (260) and Mk II (289) showing all circuits and components. Click any image to view full size.

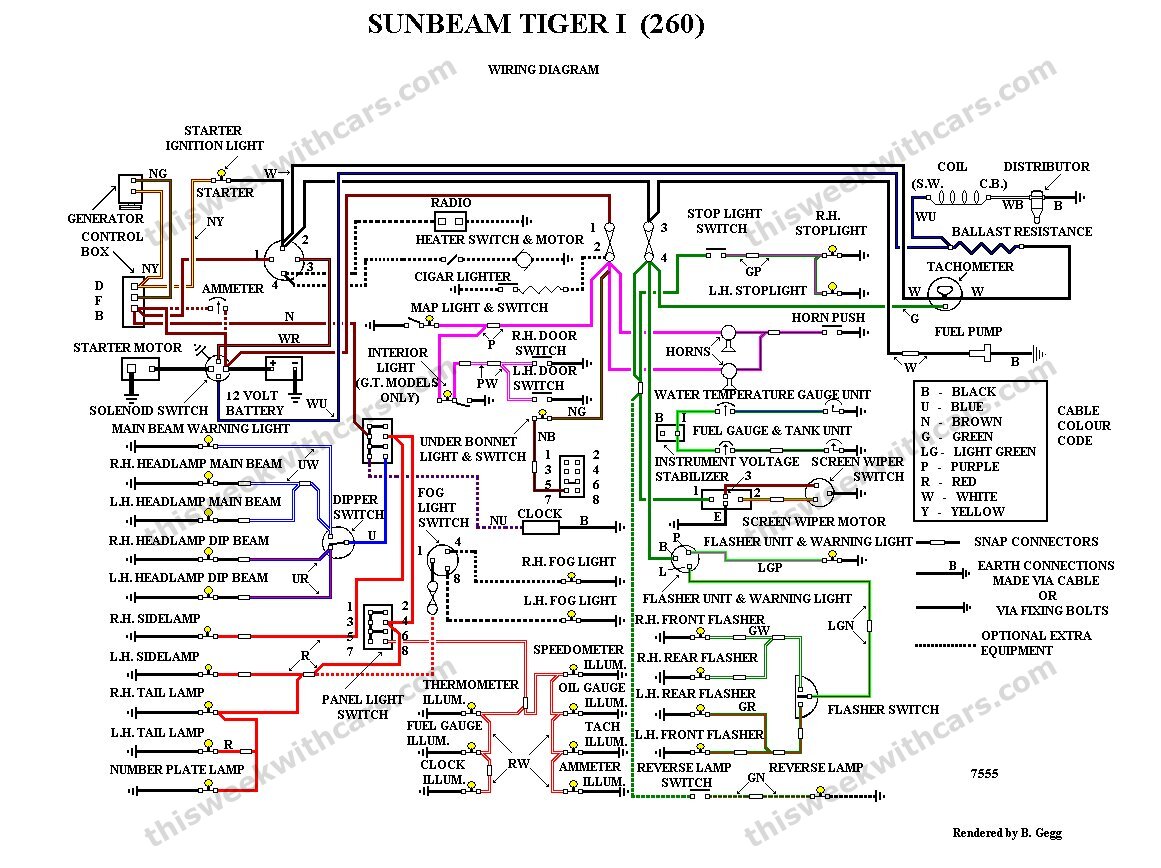

Sunbeam Tiger Mk I (260) — Colour Wiring Diagram
Colour wiring diagram — Sunbeam Tiger I (260 V8)

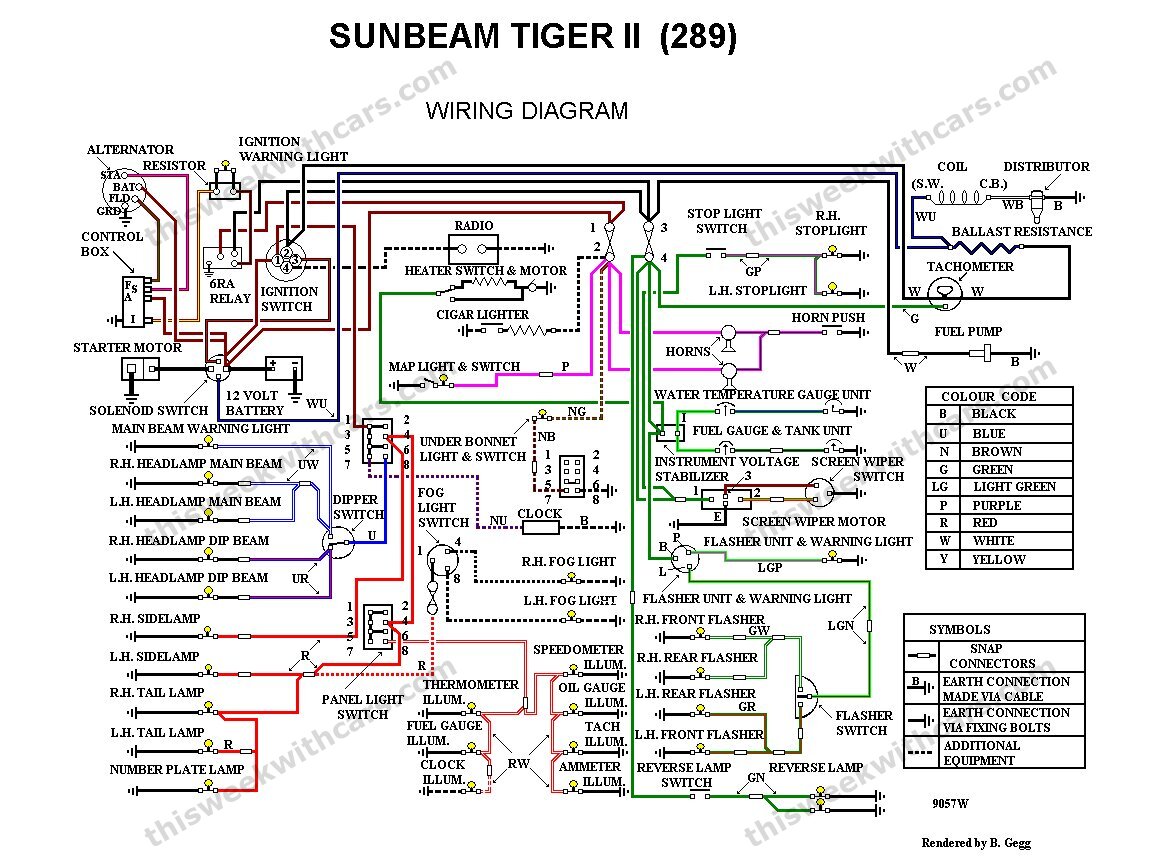

Sunbeam Tiger Mk II (289) — Colour Wiring Diagram
Colour wiring diagram — Sunbeam Tiger II (289 V8)

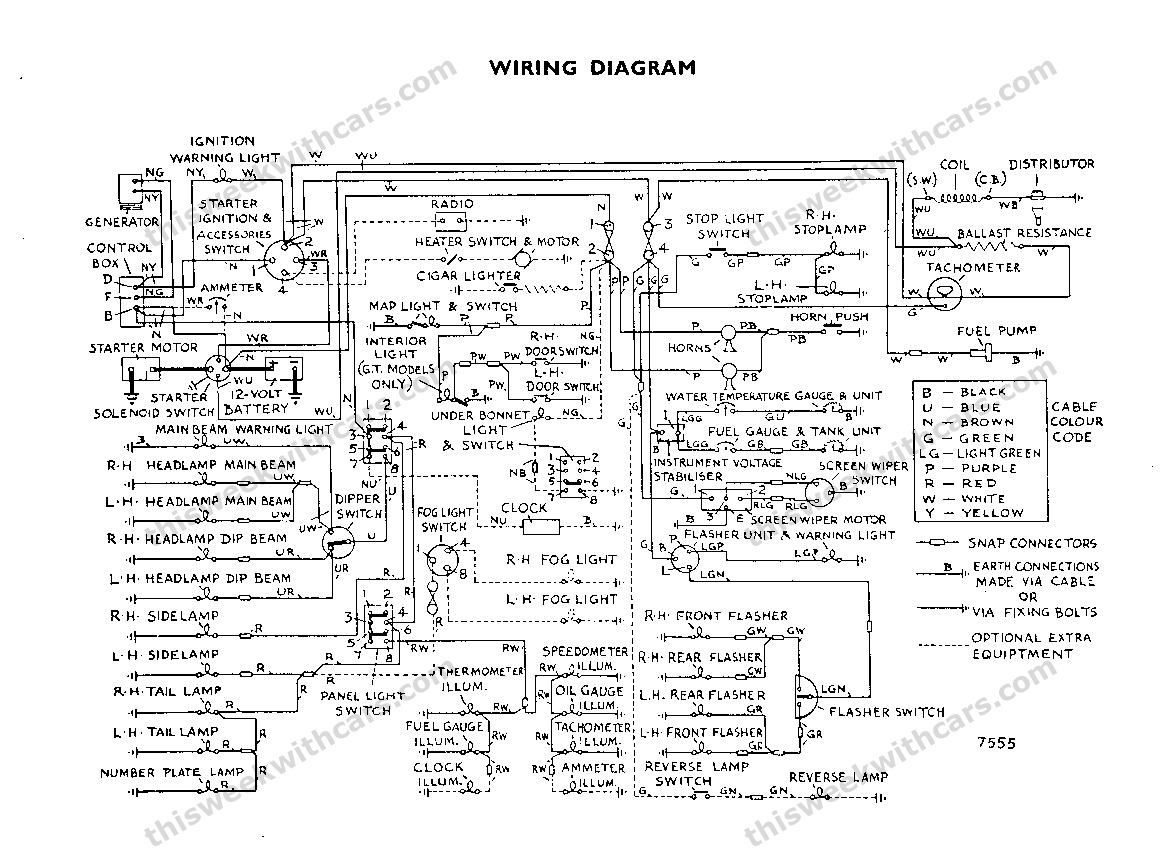

Workshop Manual Wiring Diagram
Wiring diagram from the Rootes Workshop Manual (WSM 145)

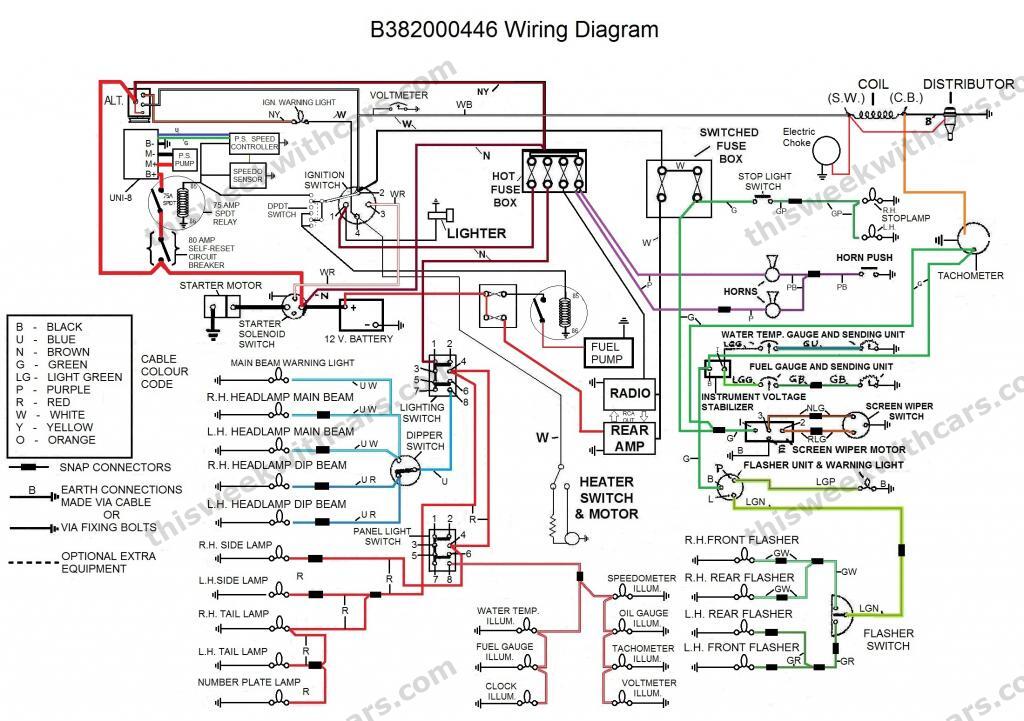

Chassis B382000446 Wiring Diagram
Detailed colour wiring diagram — Chassis B382000446
