Electrical Wiring Diagrams — Sunbeam Alpine
Complete electrical wiring diagrams for the Sunbeam Alpine Series I through V showing all circuits and components. Click any image to view full size.

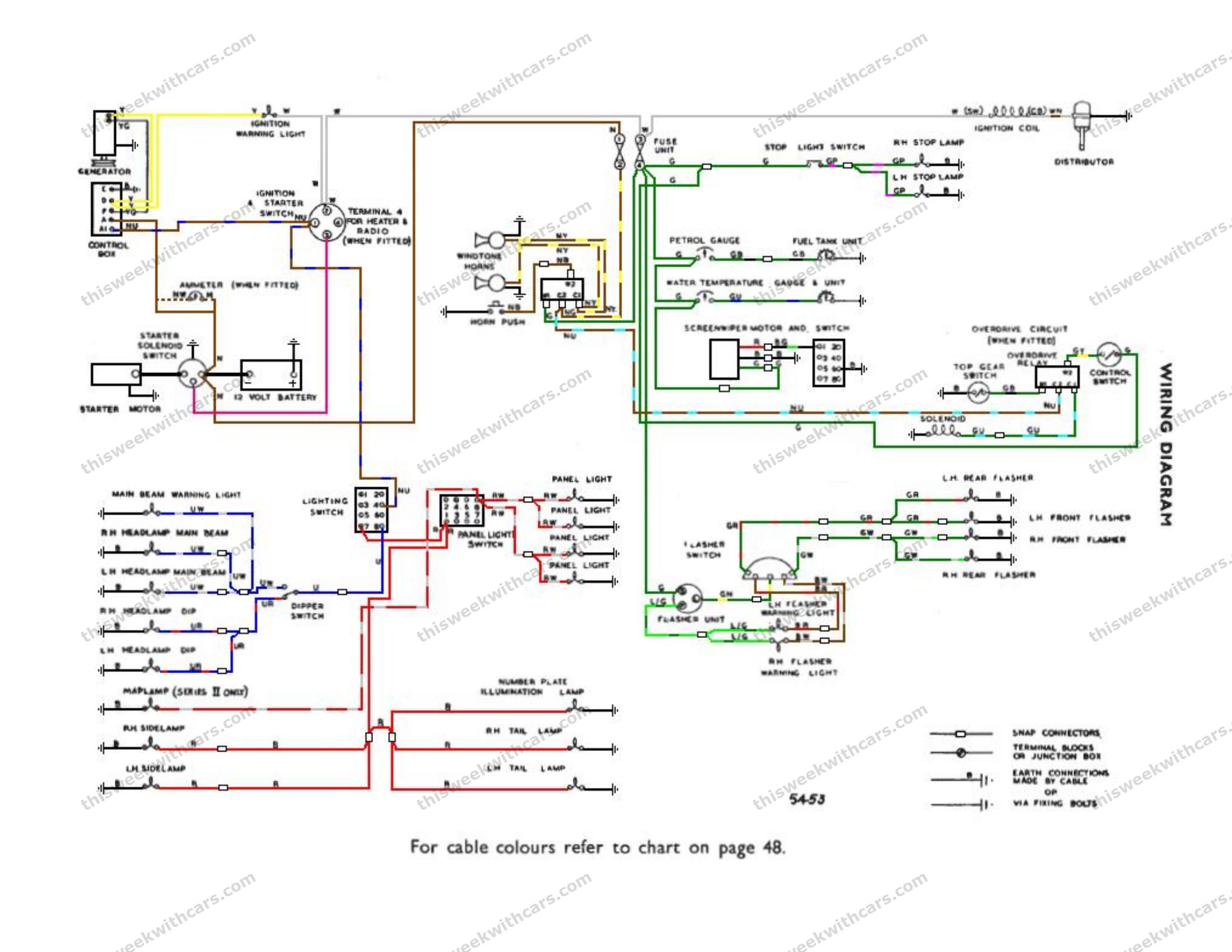

Series I Wiring Diagram
Colour wiring diagram — Sunbeam Alpine Series I

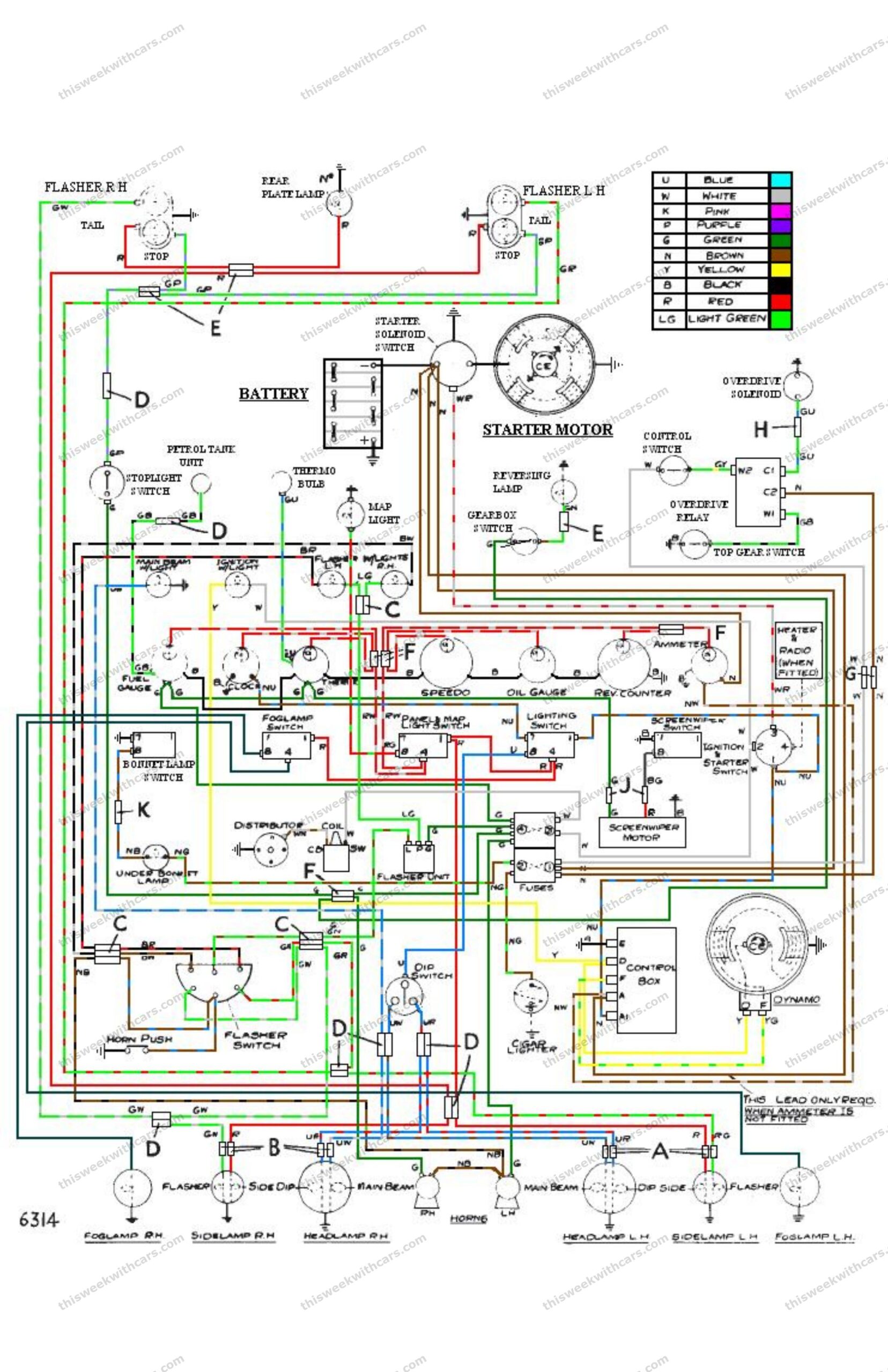

Series II Wiring Diagram
Colour wiring diagram — Sunbeam Alpine Series II

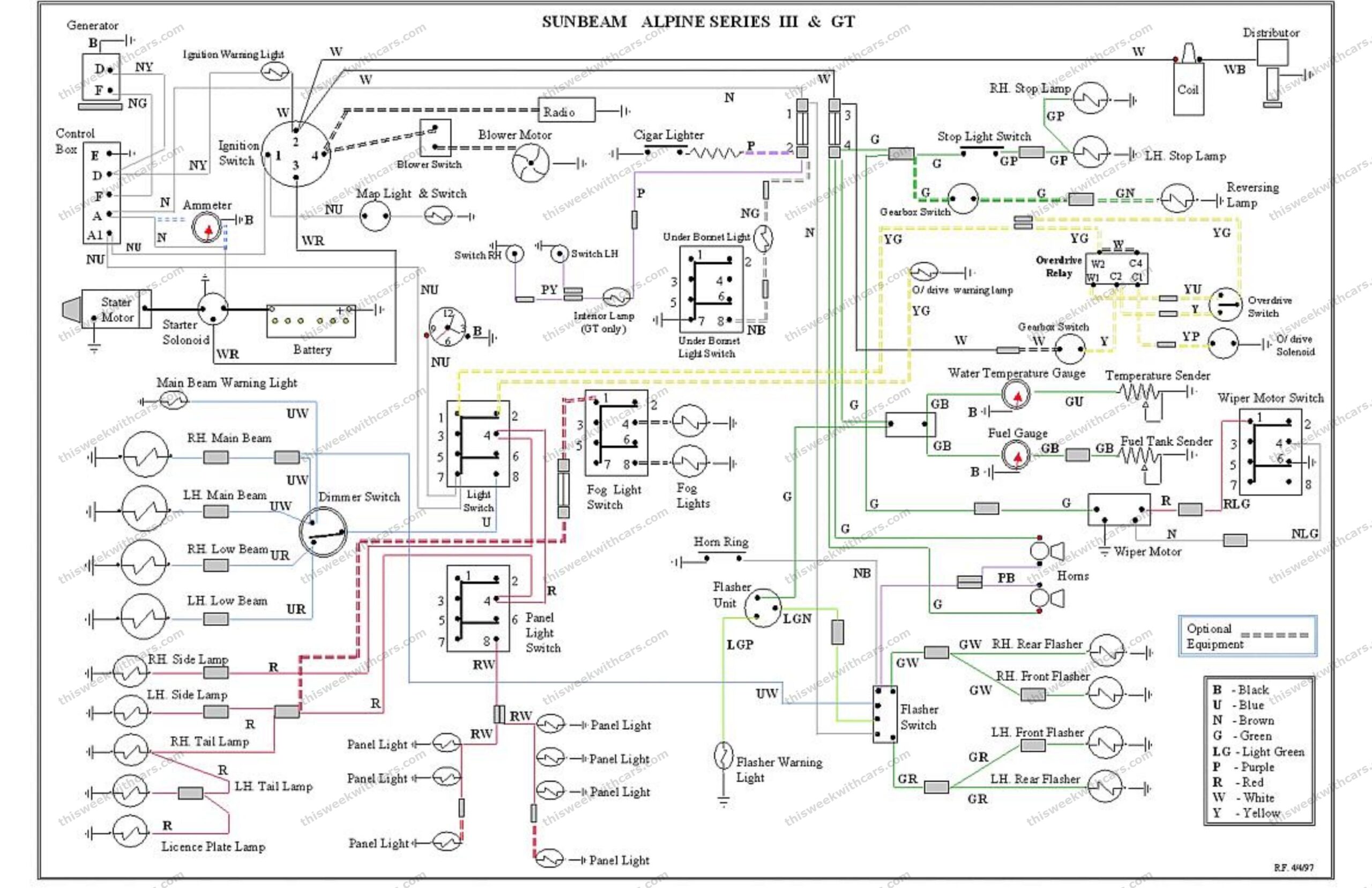

Series III & GT Wiring Diagram
Colour wiring diagram — Sunbeam Alpine Series III & GT

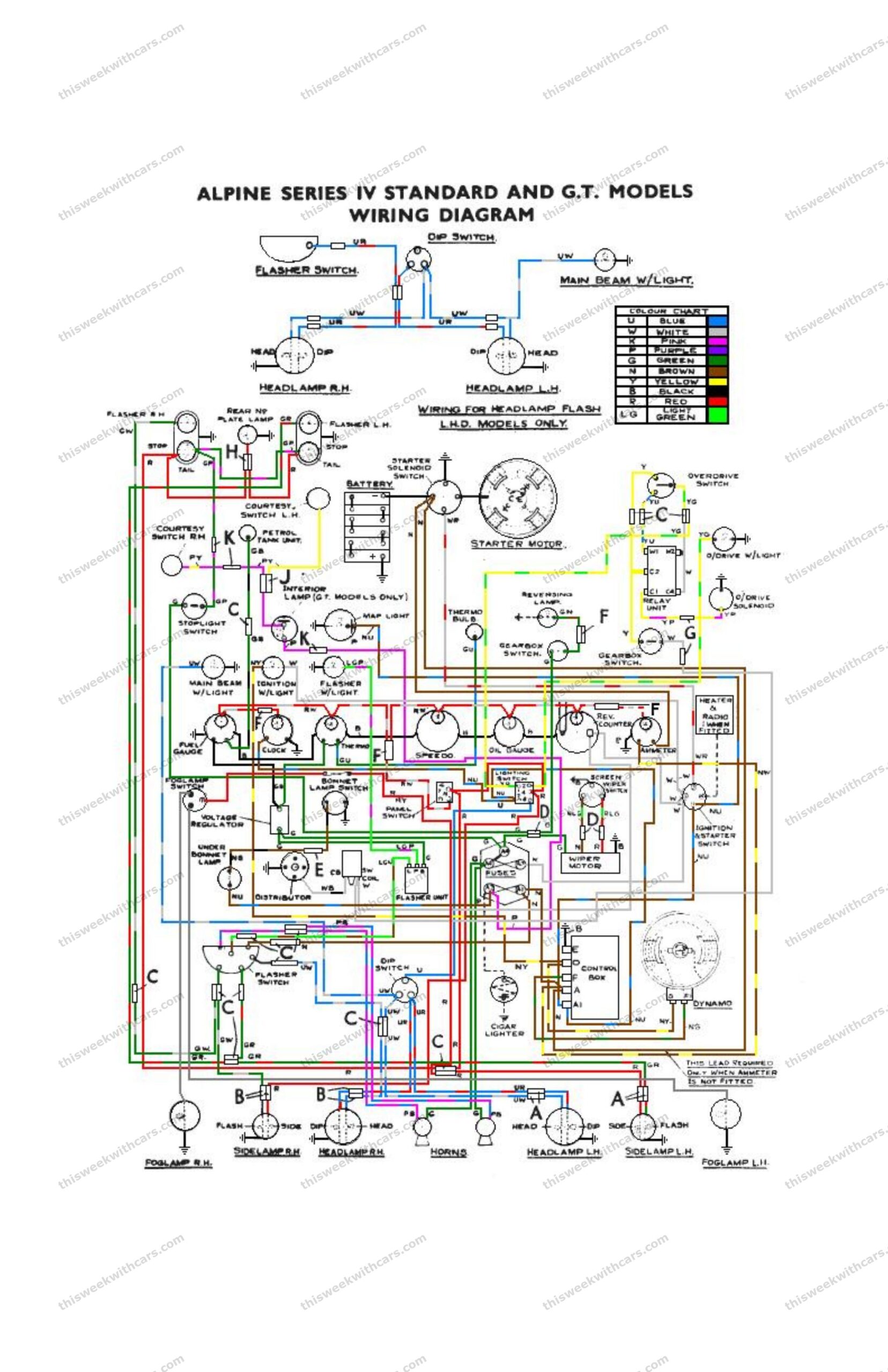

Series IV Wiring Diagram
Colour wiring diagram — Alpine Series IV Standard and G.T. Models

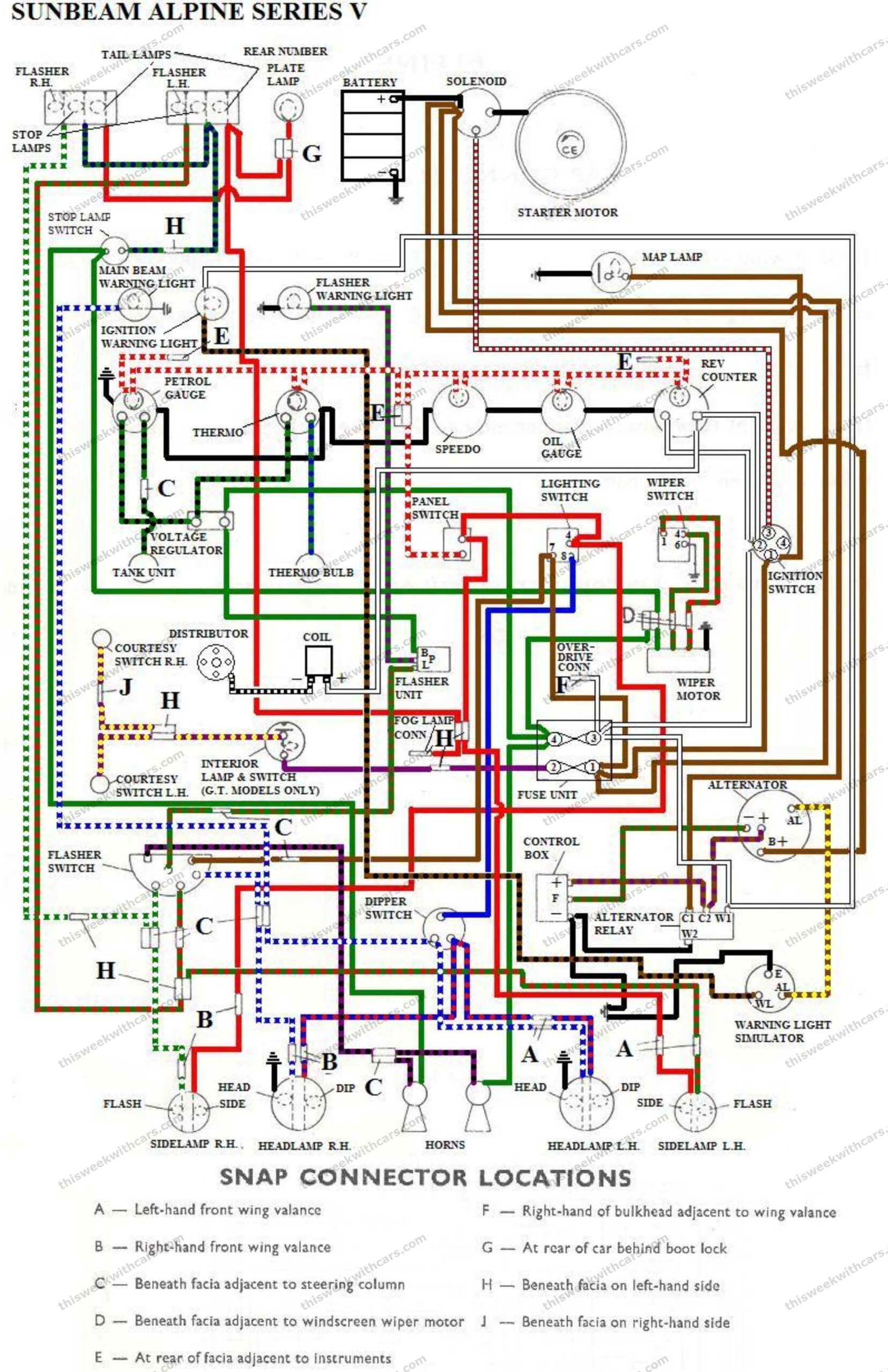

Series V Wiring Diagram
Colour wiring diagram — Sunbeam Alpine Series V with snap connector locations
