Electrical Wiring Diagrams — Morris Minor
Complete electrical wiring diagrams for the Morris Minor covering models with dynamo (separate flashing equipment) and models with alternator. Click any image to view full size.

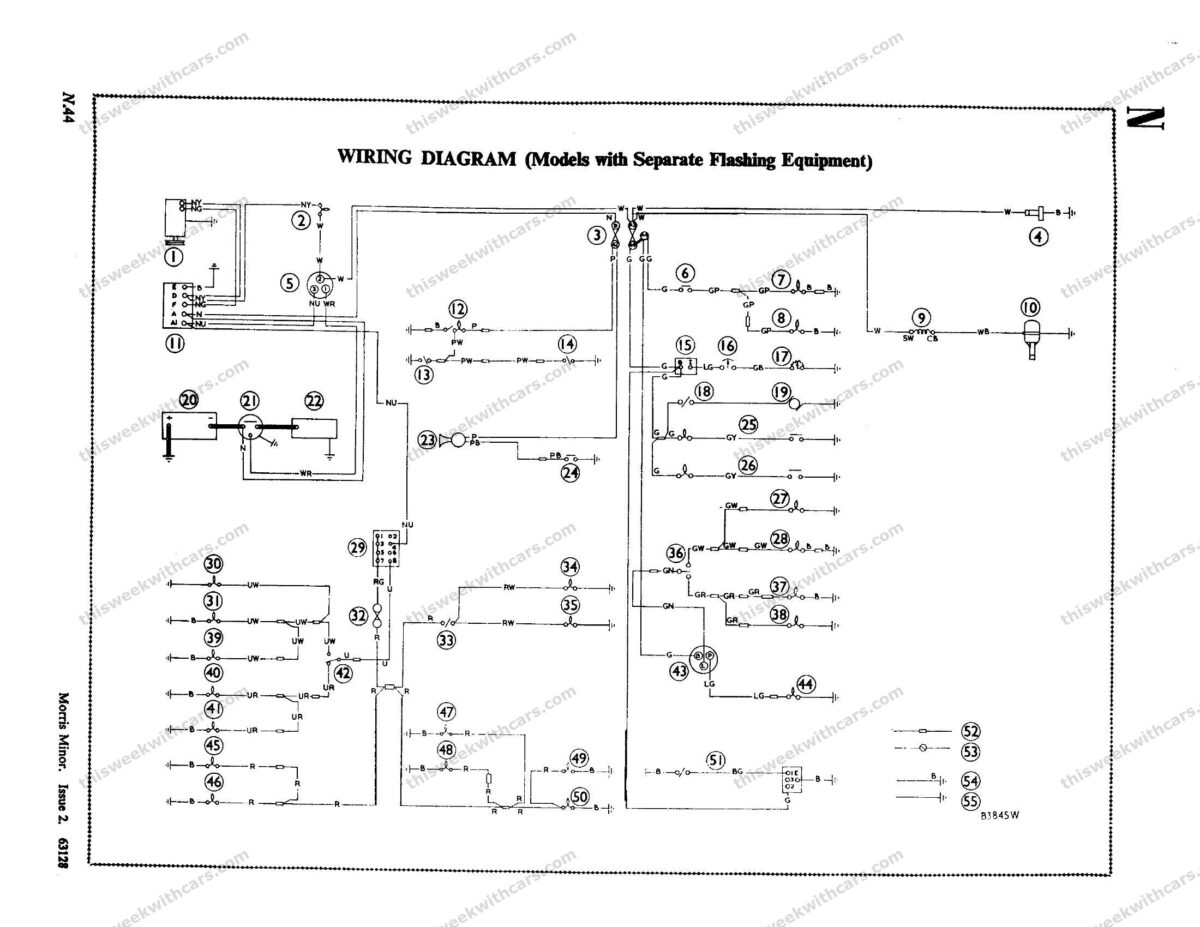

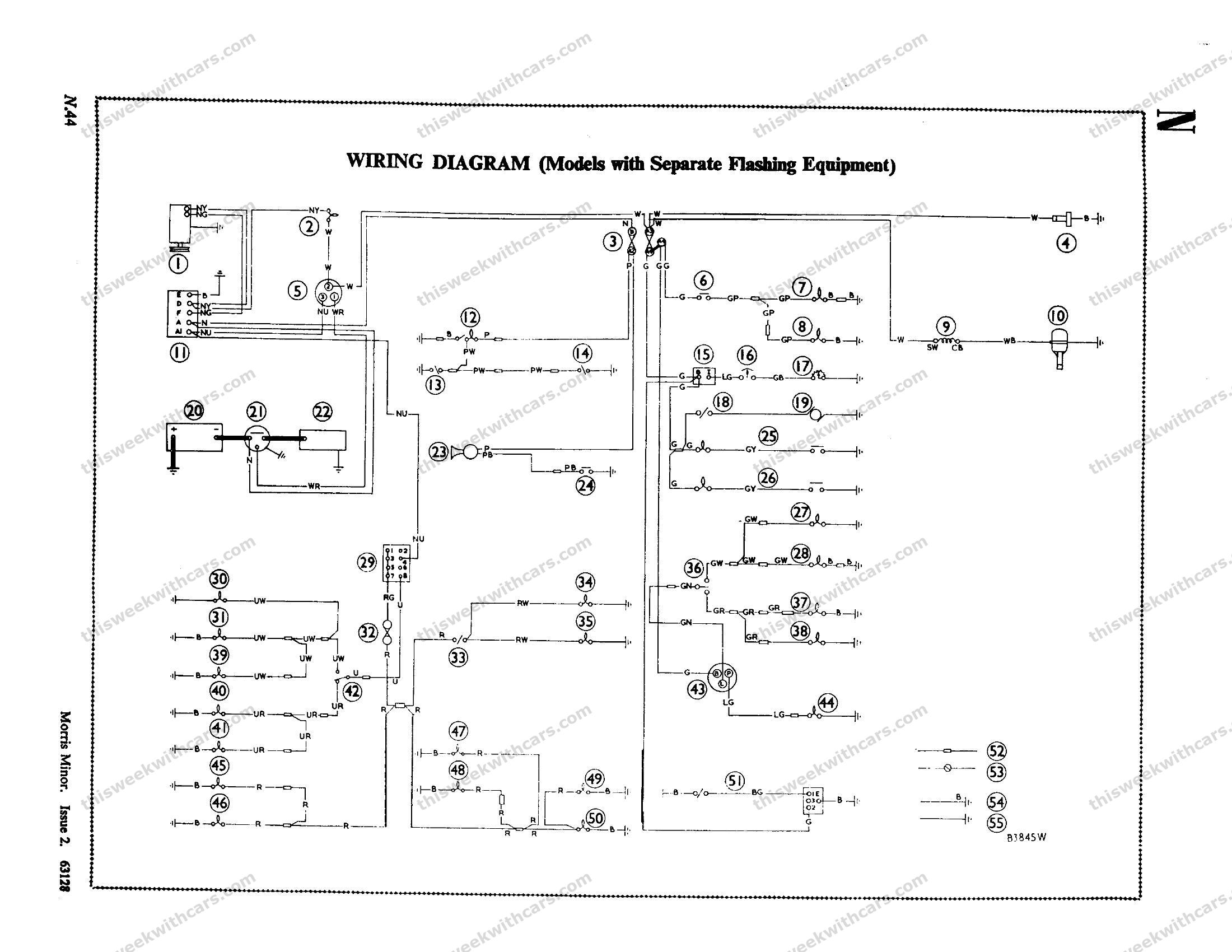

Wiring Diagram — Models with Separate Flashing Equipment (Dynamo)
Wiring diagram for models with separate flashing equipment and dynamo

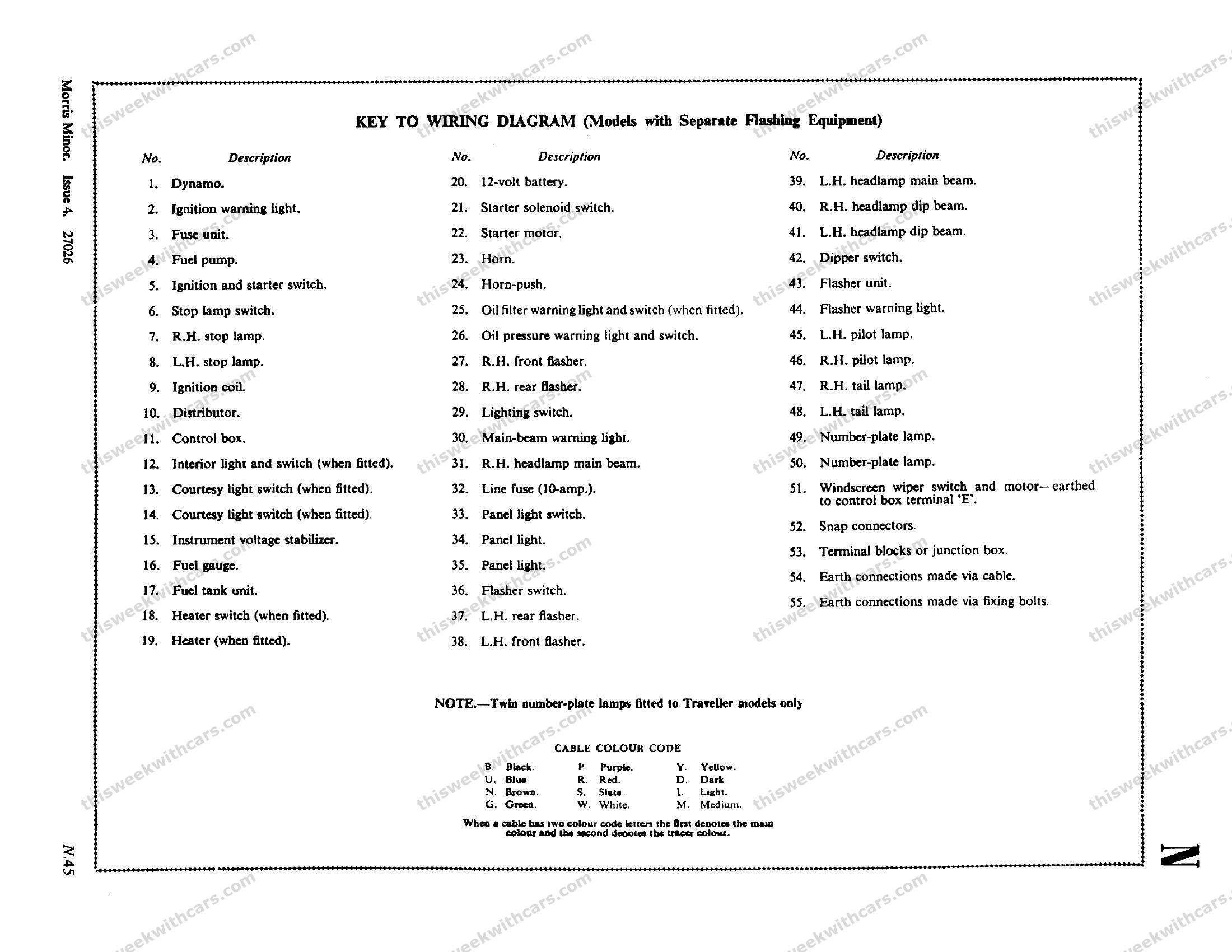

Key to Wiring Diagram — Models with Separate Flashing Equipment
Key to wiring diagram — models with separate flashing equipment

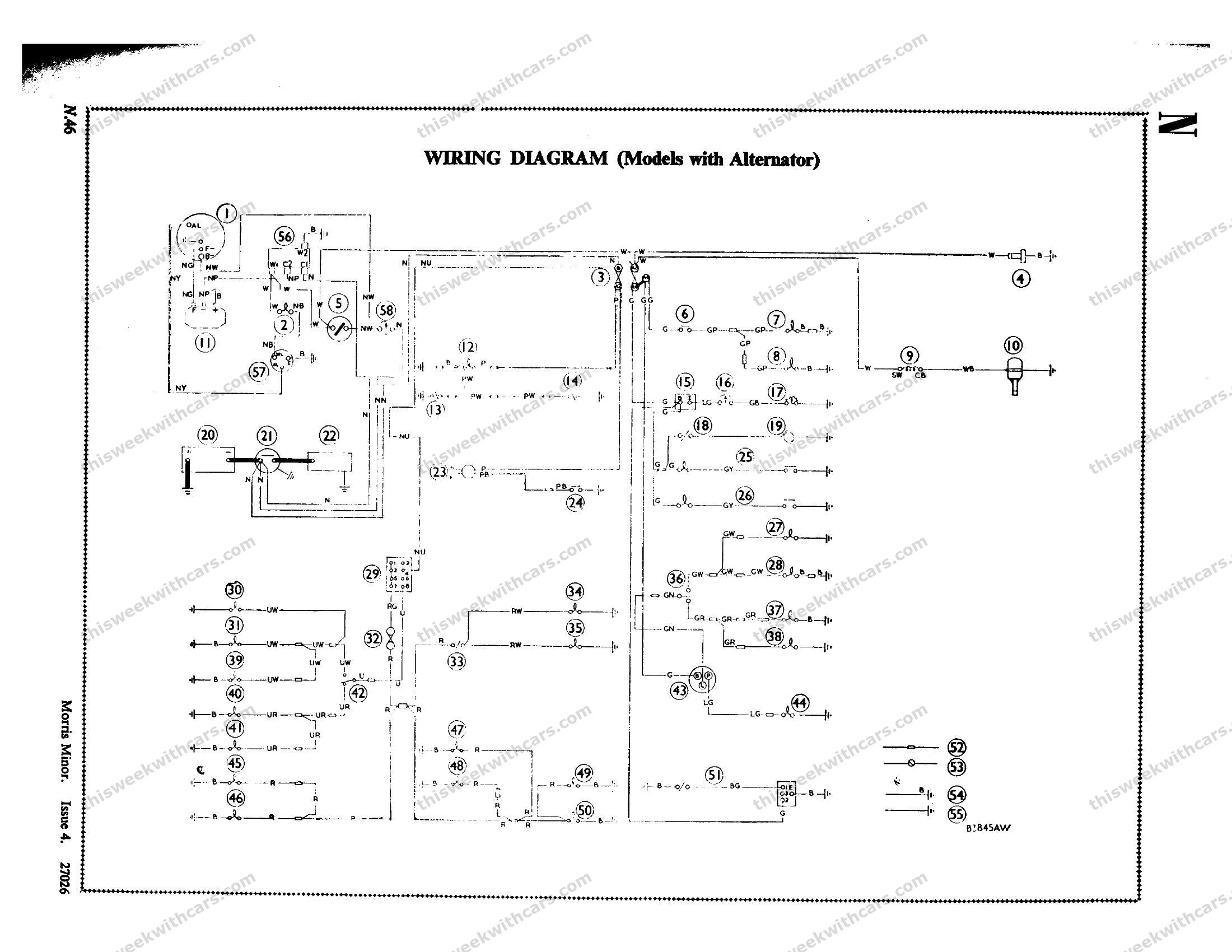

Wiring Diagram — Models with Alternator
Wiring diagram for later models fitted with alternator

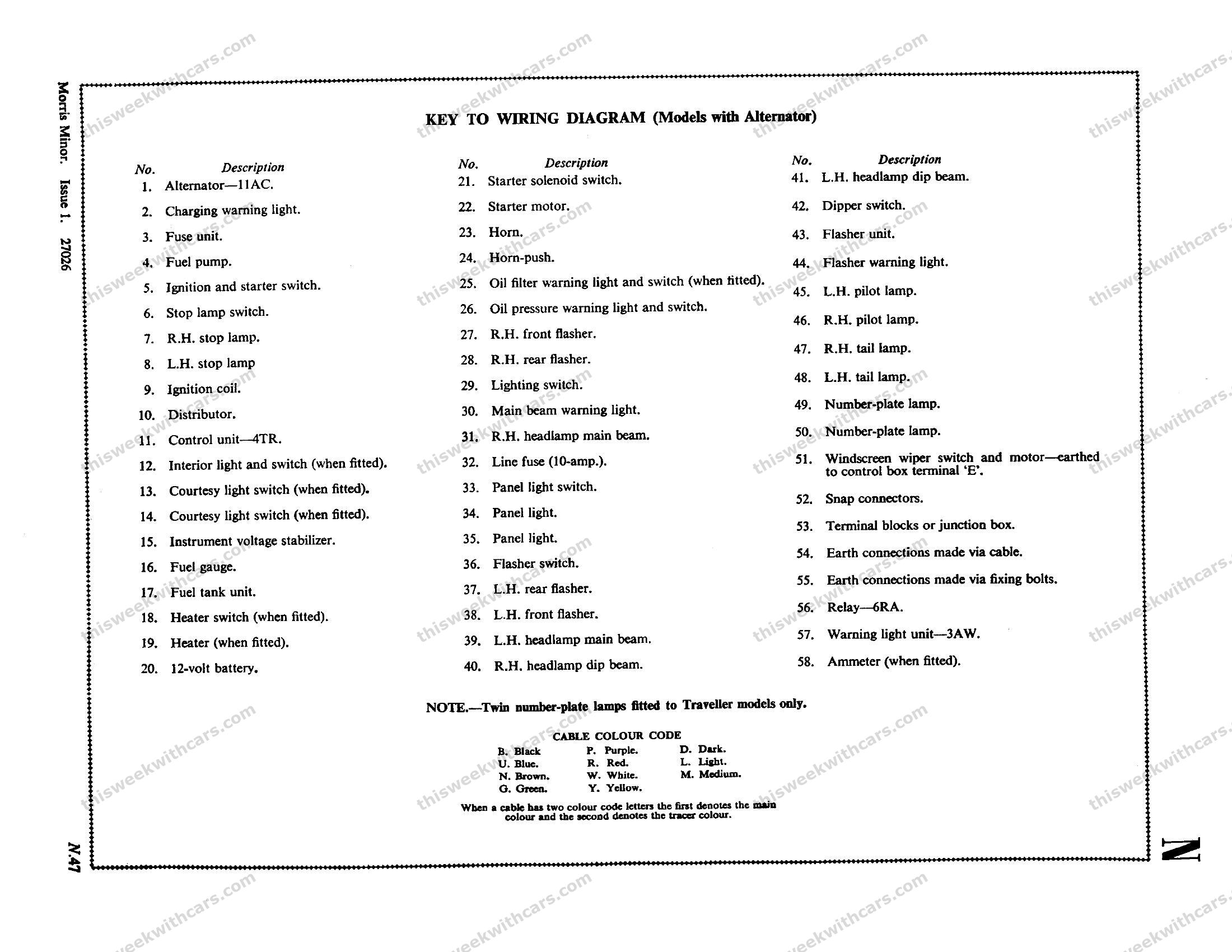

Key to Wiring Diagram — Models with Alternator
Key to wiring diagram — models with alternator

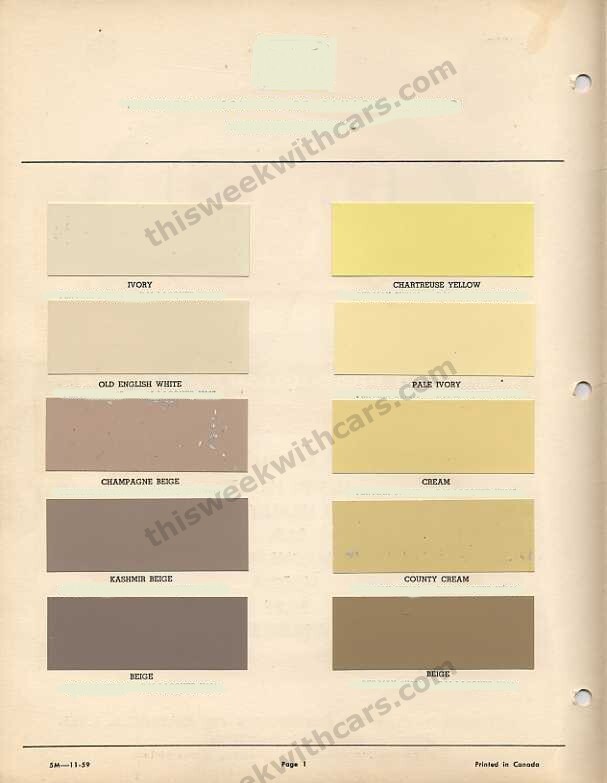

Factory Colour Chips
Factory colour chips — Morris Minor (1952)
