Wiring Diagrams

Workshop Manual Wiring Diagrams

Wiring diagrams and keys from the Triumph TR6 Workshop Manual. Click any image to view full size.

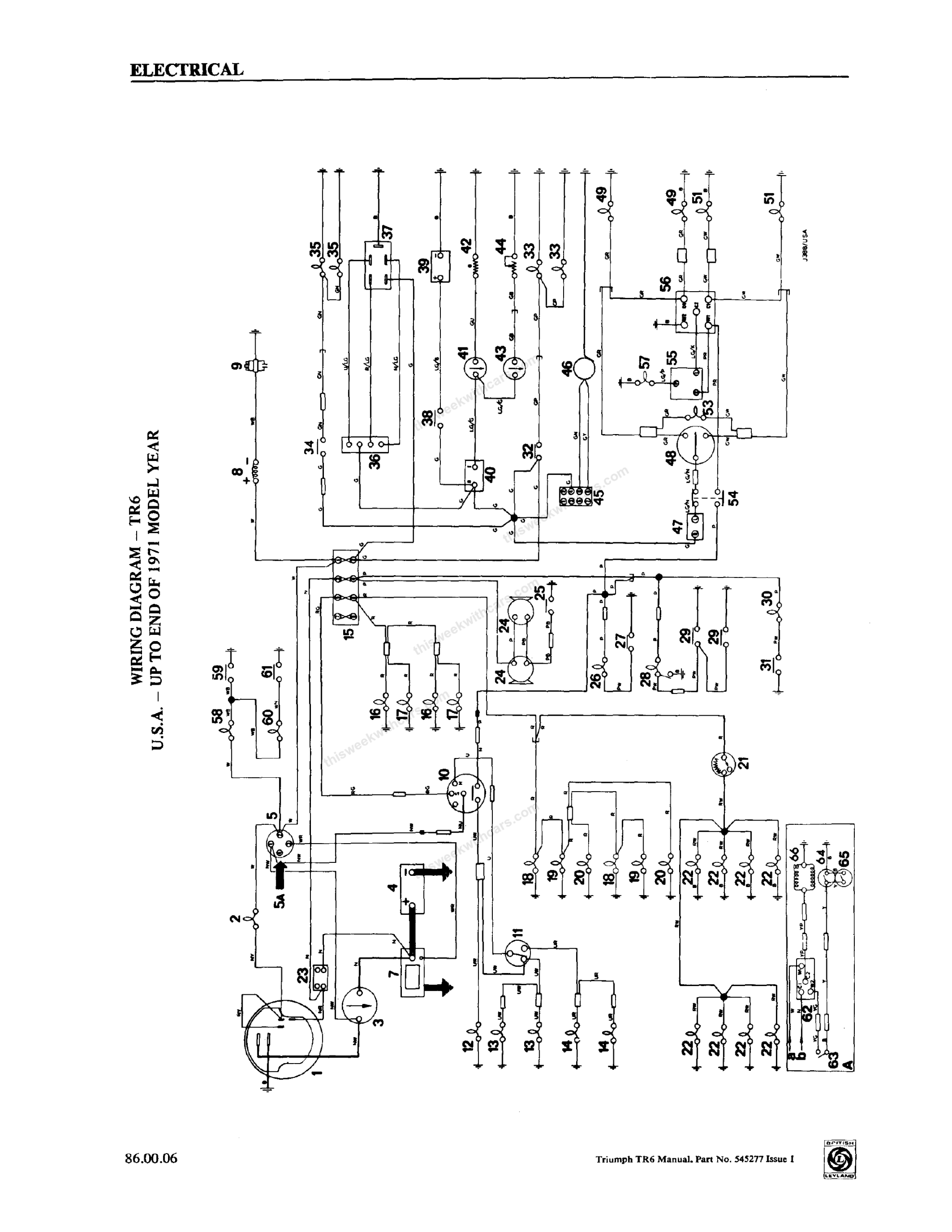

Page 1

---

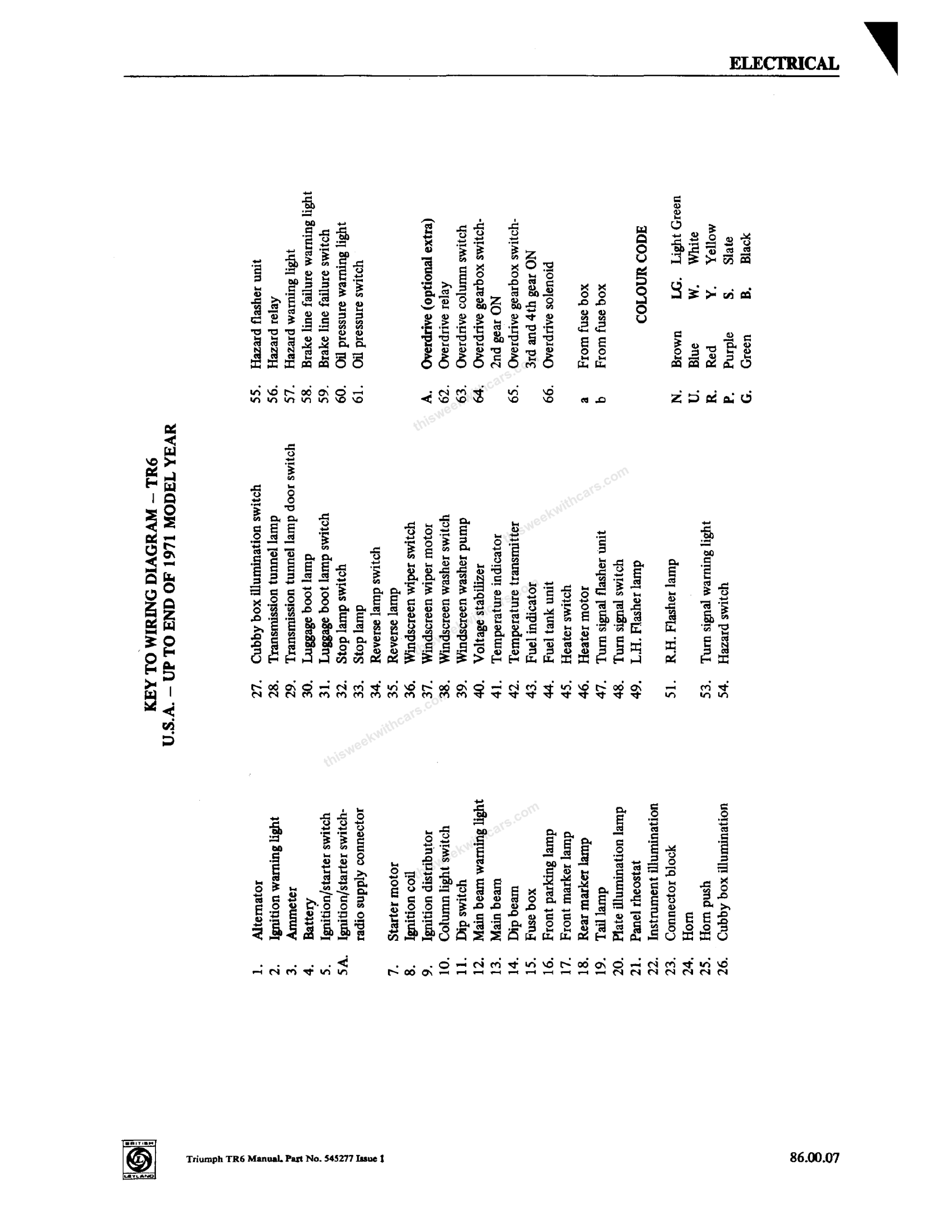

Page 2

---

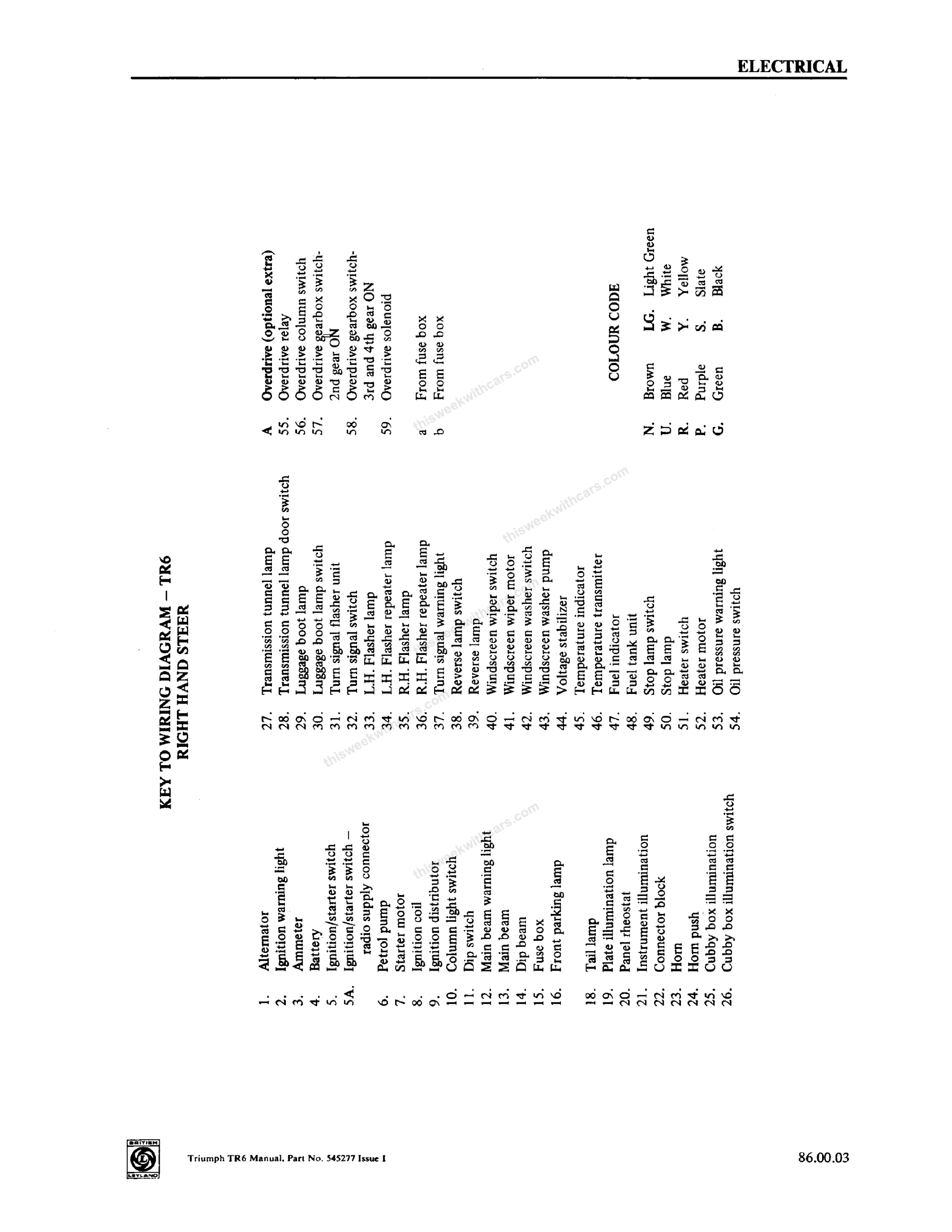

Page 3

---

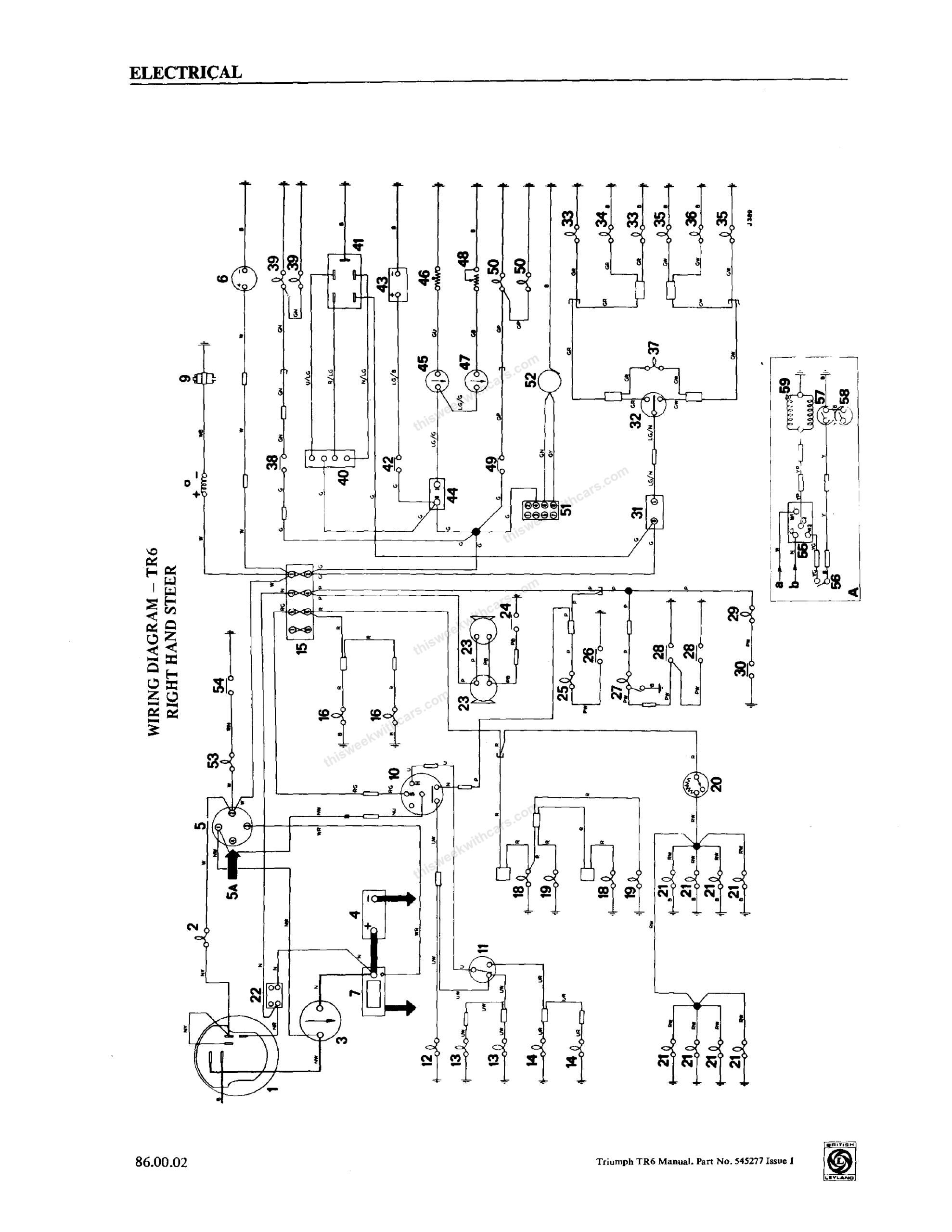

Page 4

---

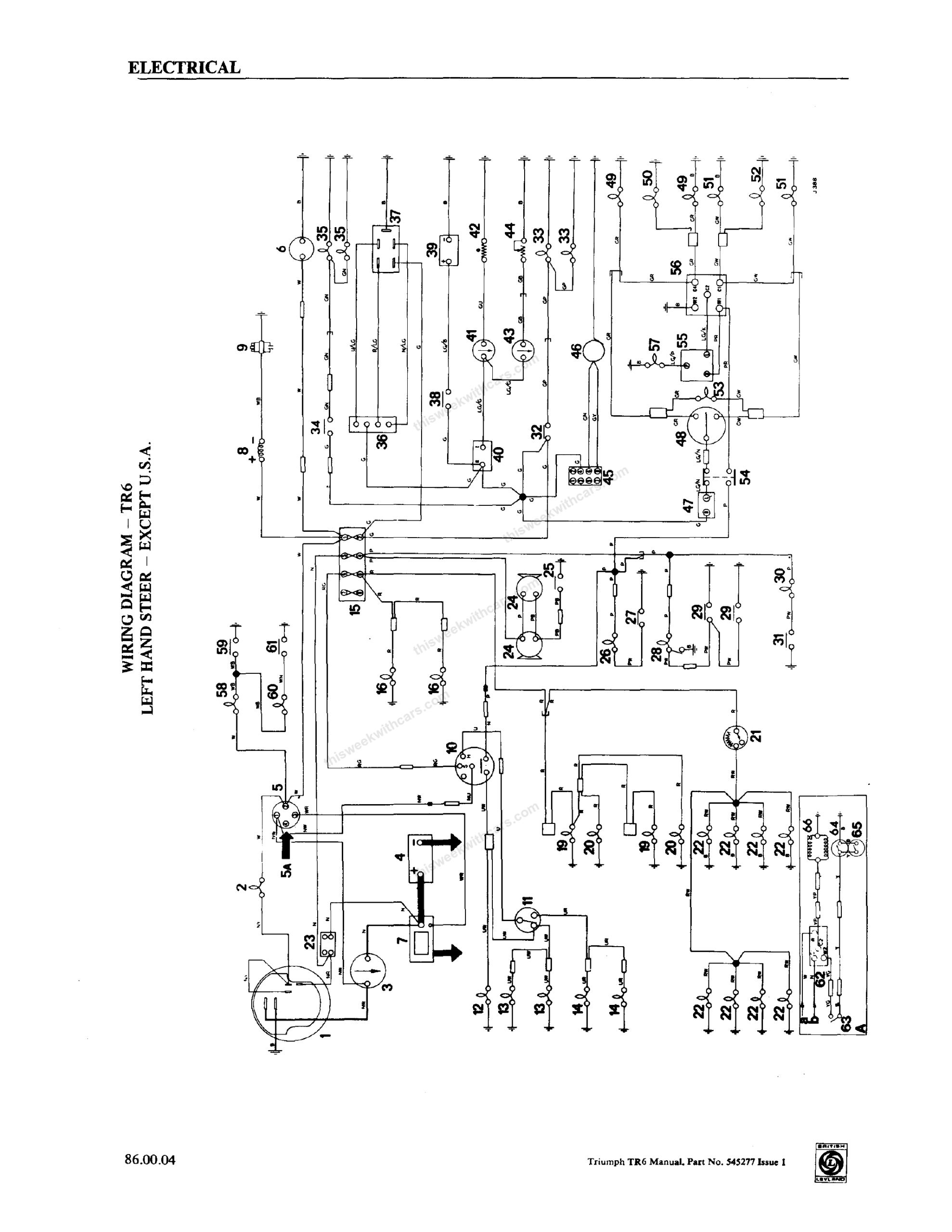

Page 5

---

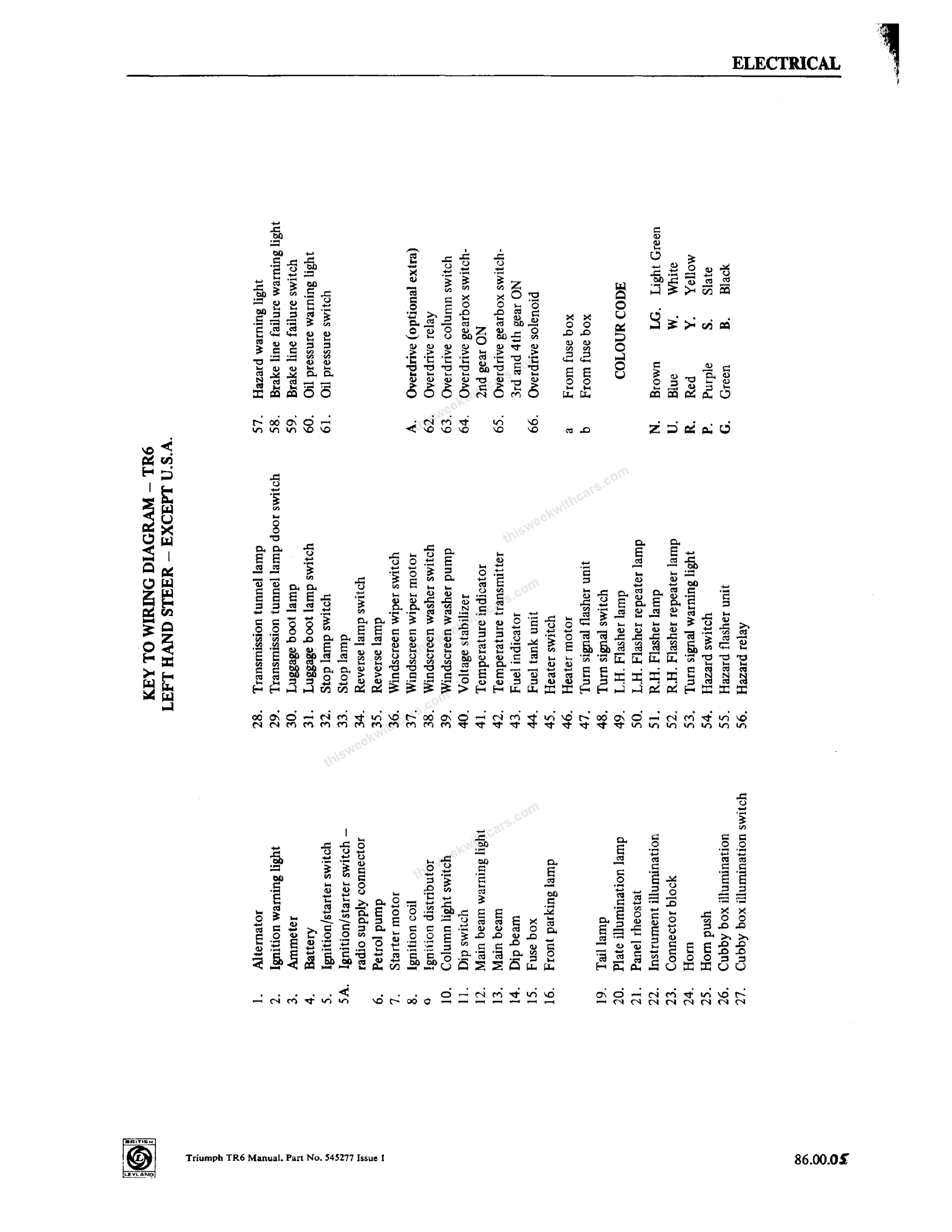

Page 6

---

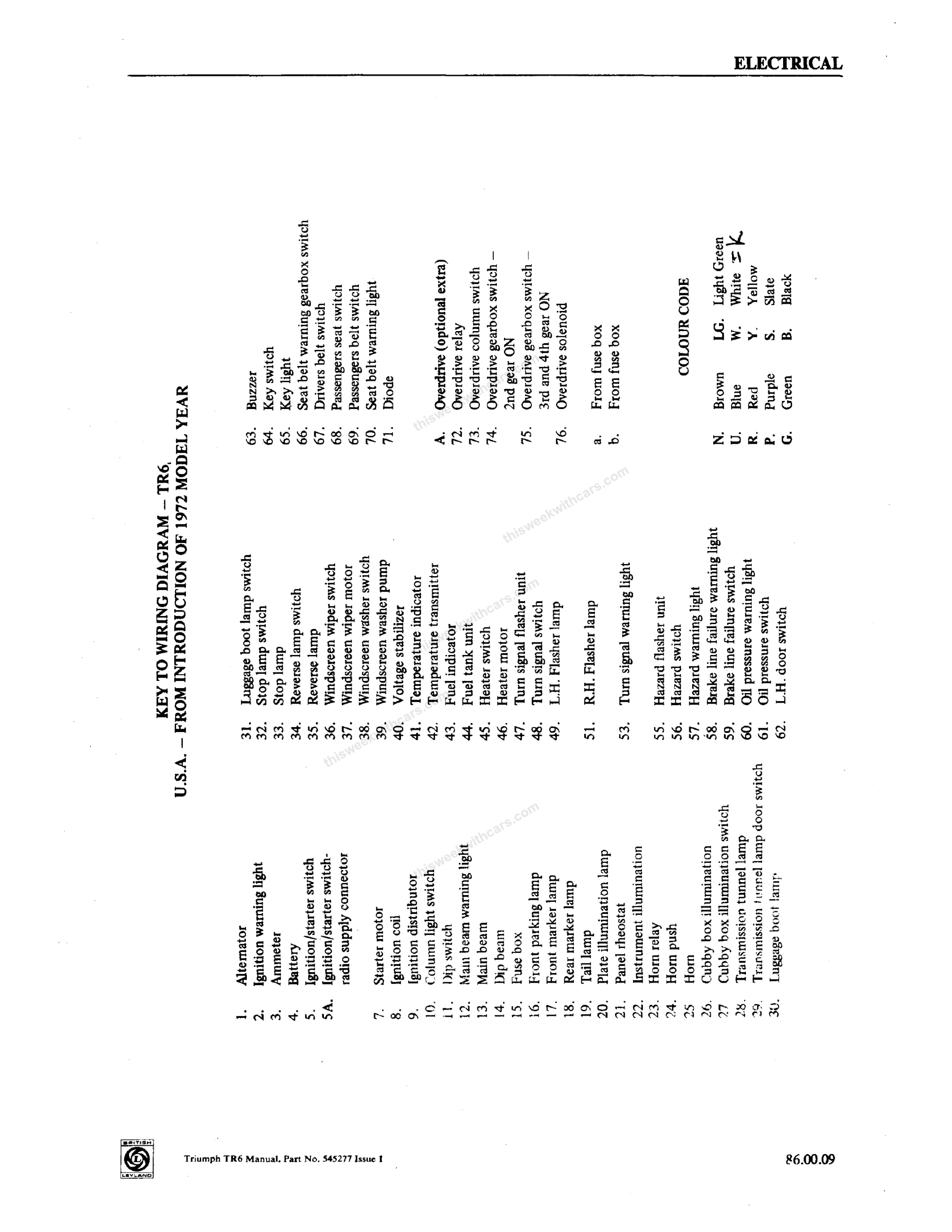

Page 7

---

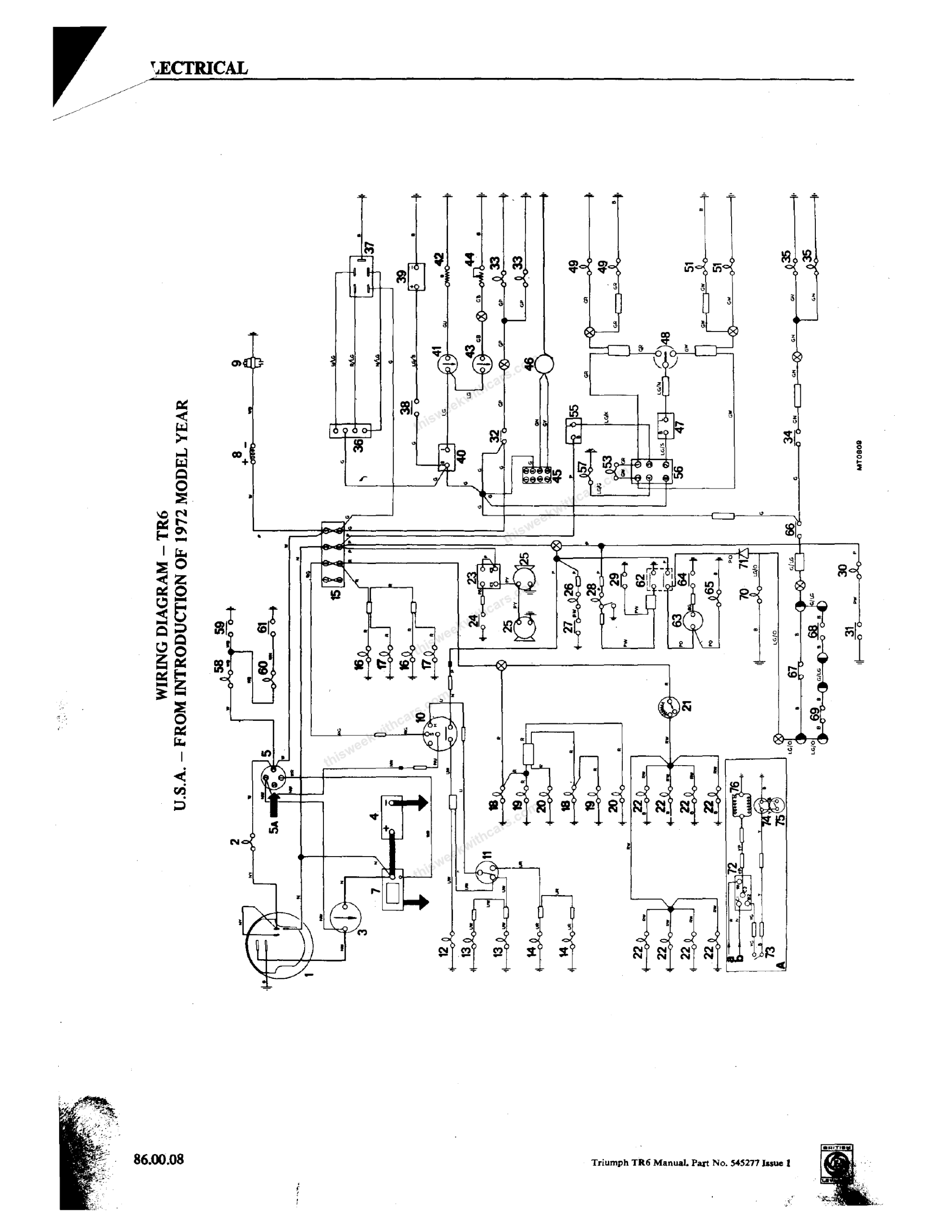

Page 8

---
