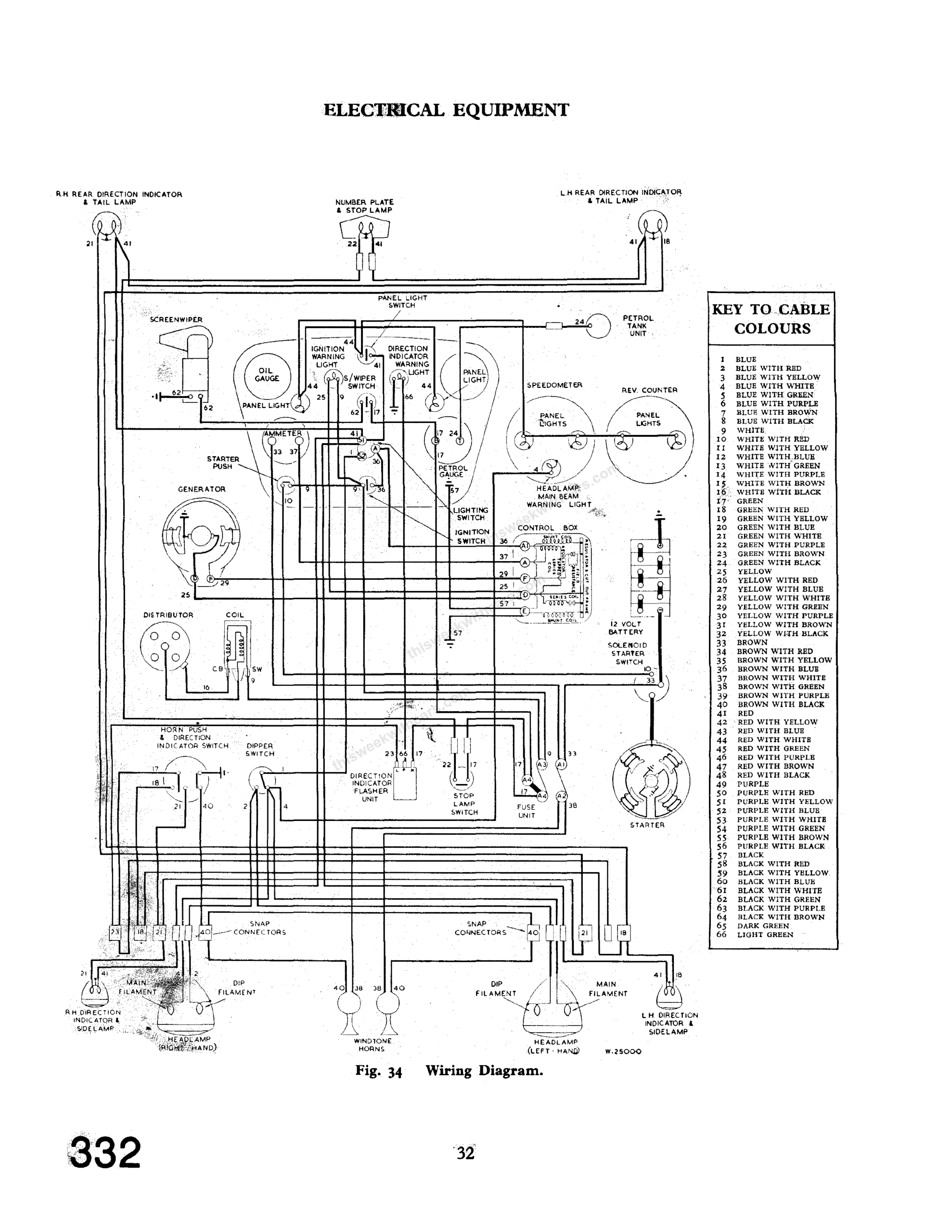

Workshop Manual Wiring Diagram — Factory (Fig. 34)
Electrical equipment wiring diagram from the Triumph TR2, TR3, TR3A Factory Service Manual with key to cable colours. Click any image to view full size.

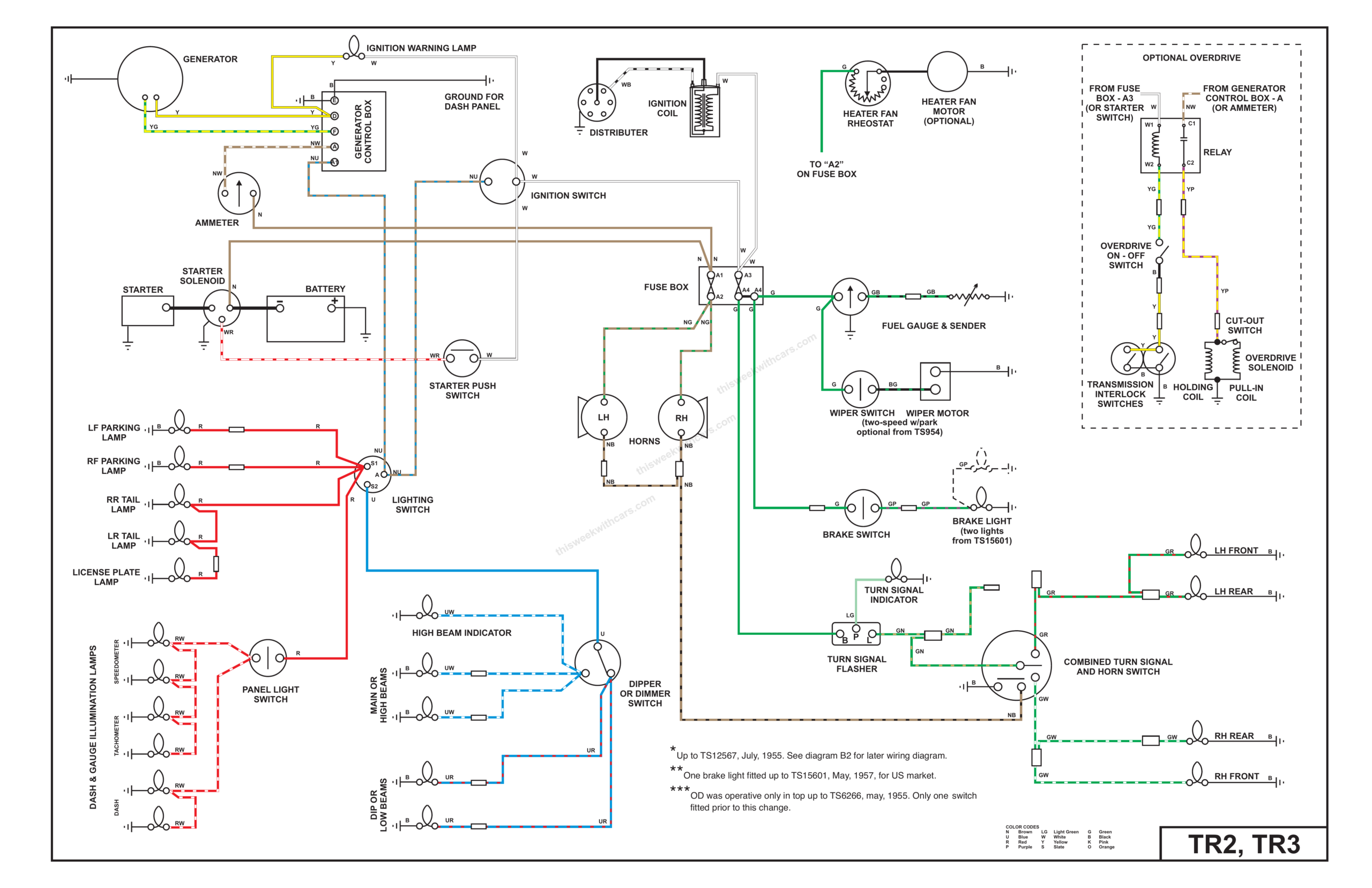

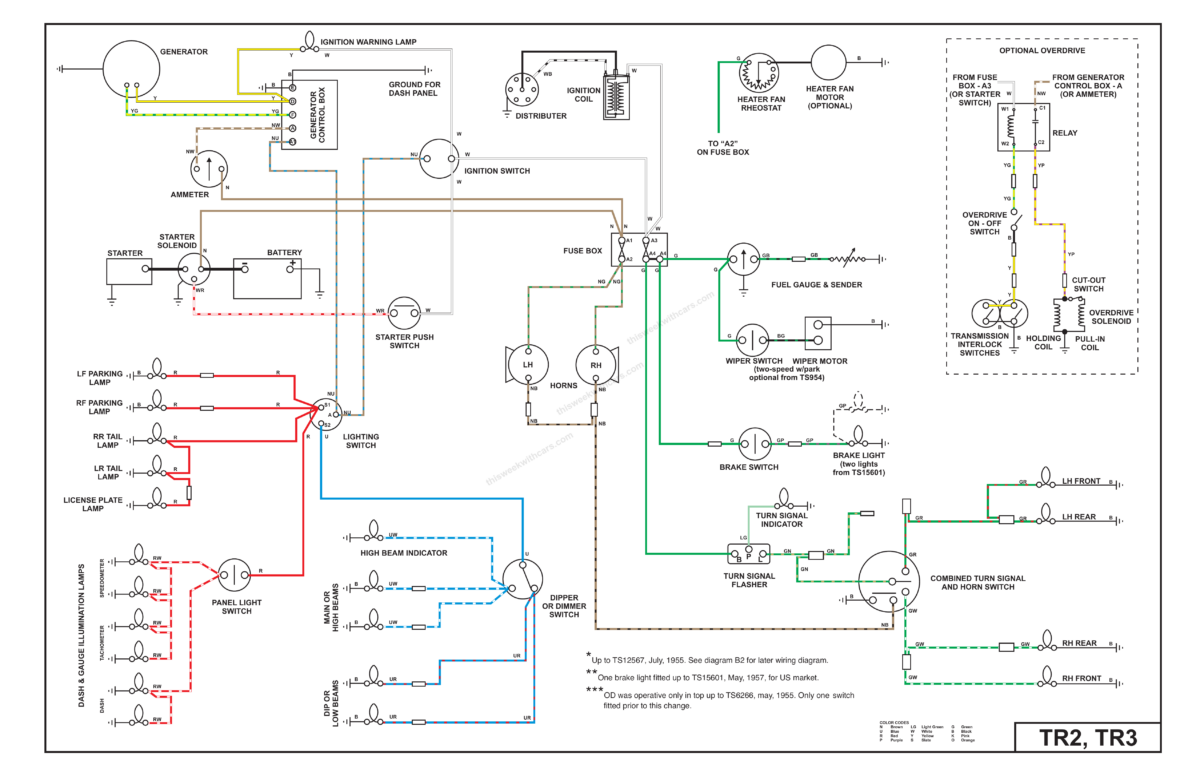

Workshop Manual Wiring Diagram — TR2, TR3
Color wiring diagram for the Triumph TR2 and TR3. Click any image to view full size.

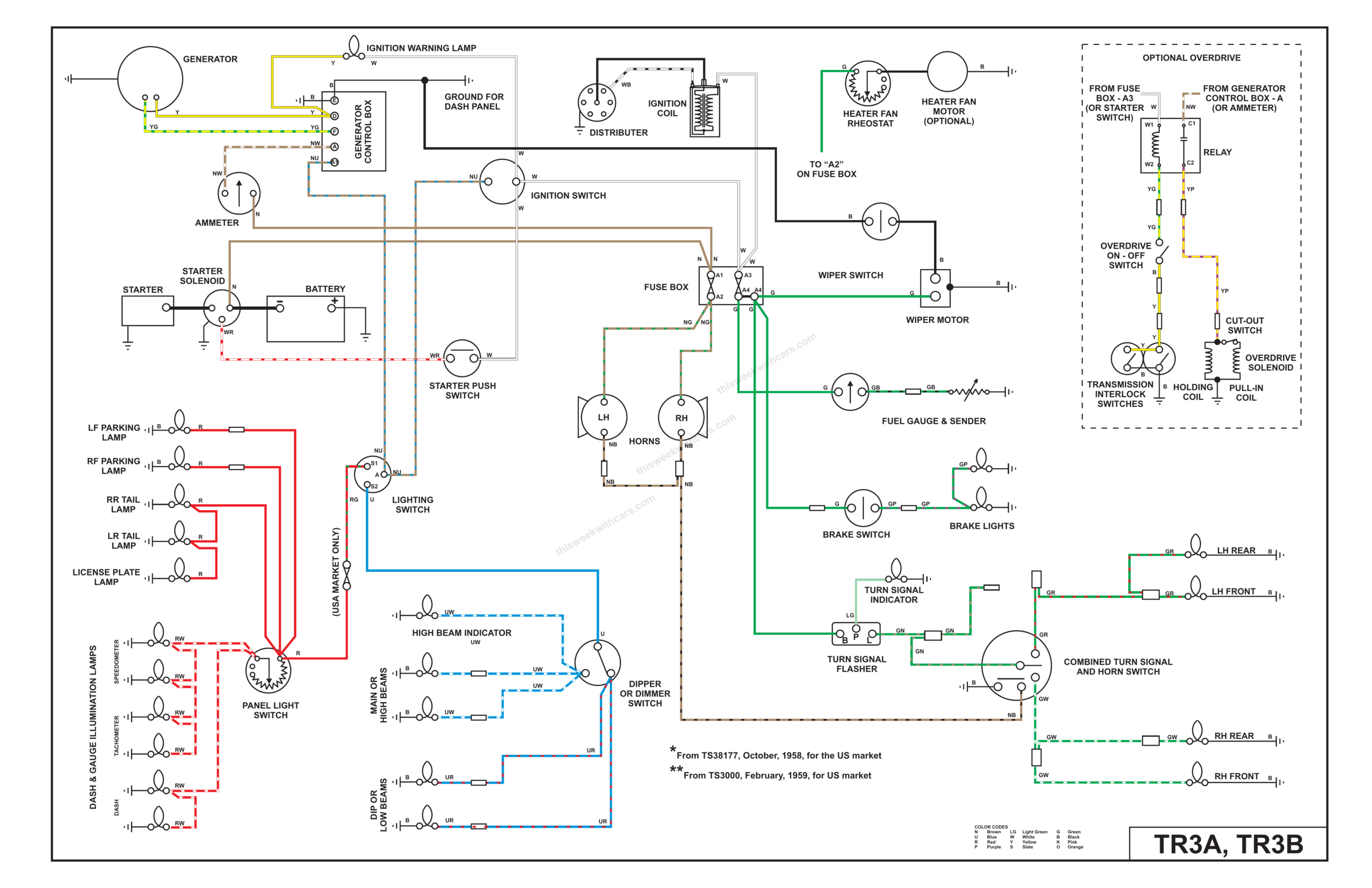

Workshop Manual Wiring Diagram — TR3A, TR3B
Color wiring diagram for the Triumph TR3A and TR3B.
