Workshop Manual Wiring Diagrams

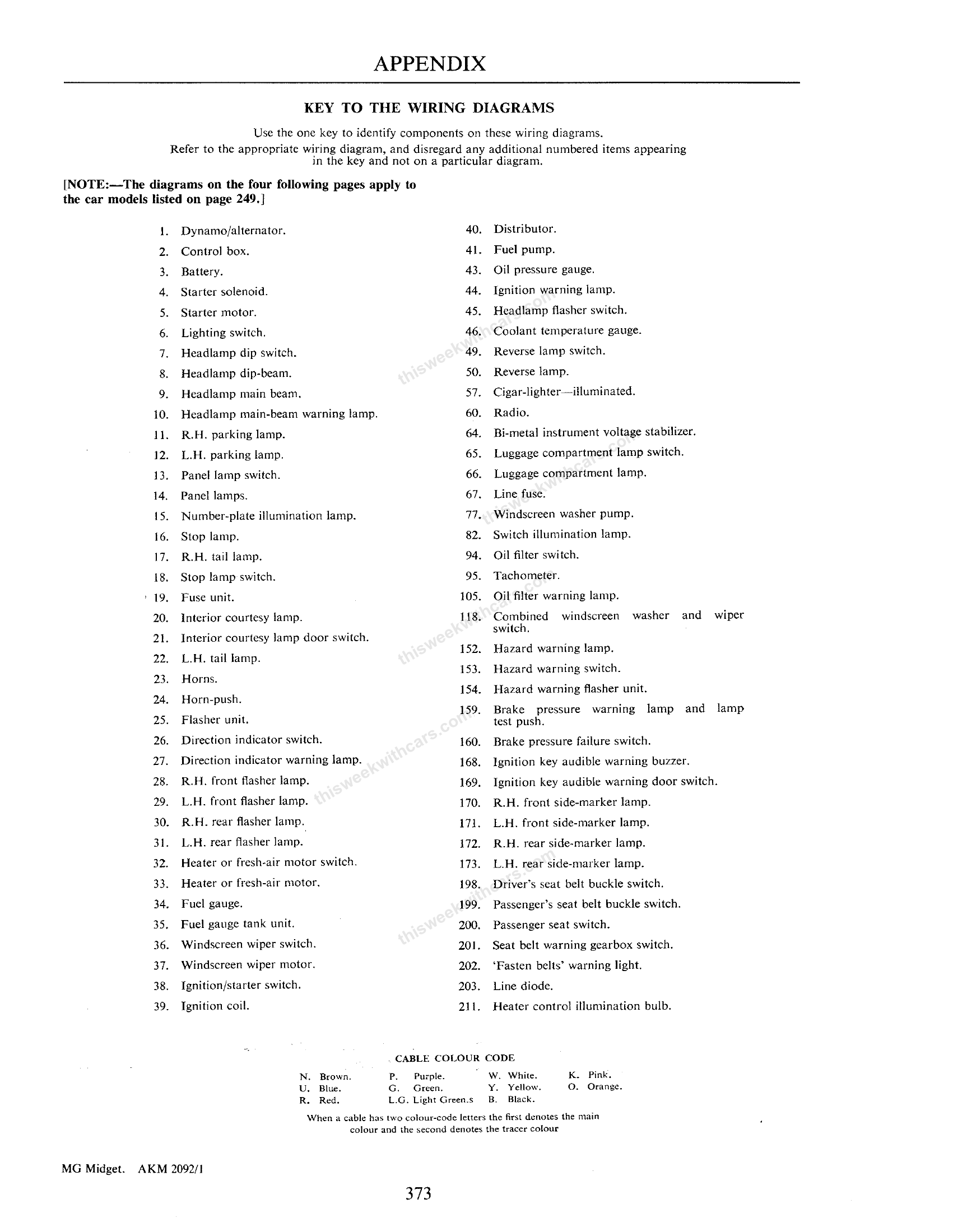

Key to Wiring Diagrams
Use this key to identify components on all wiring diagrams below. Click any image to view full size.

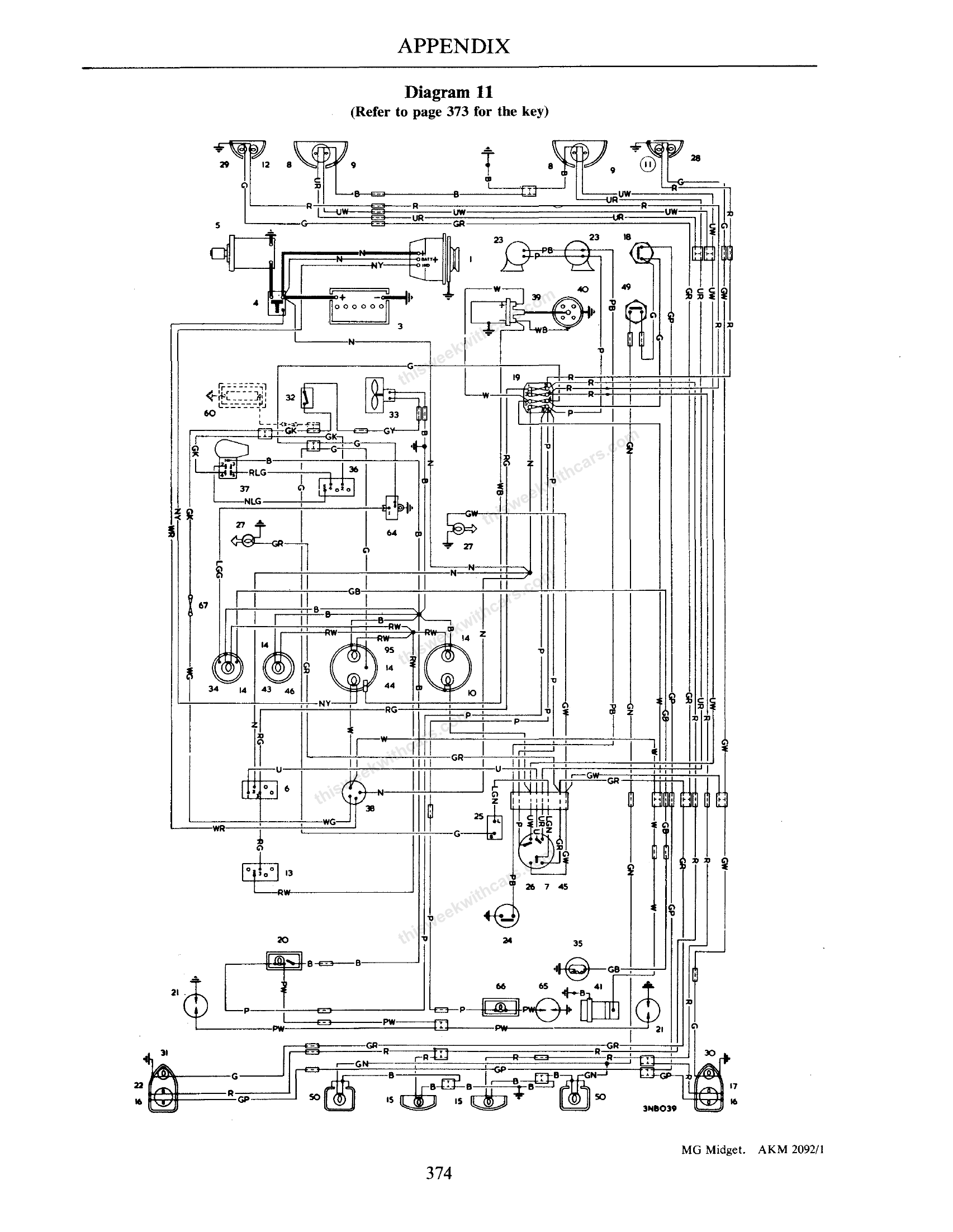

Diagram 11

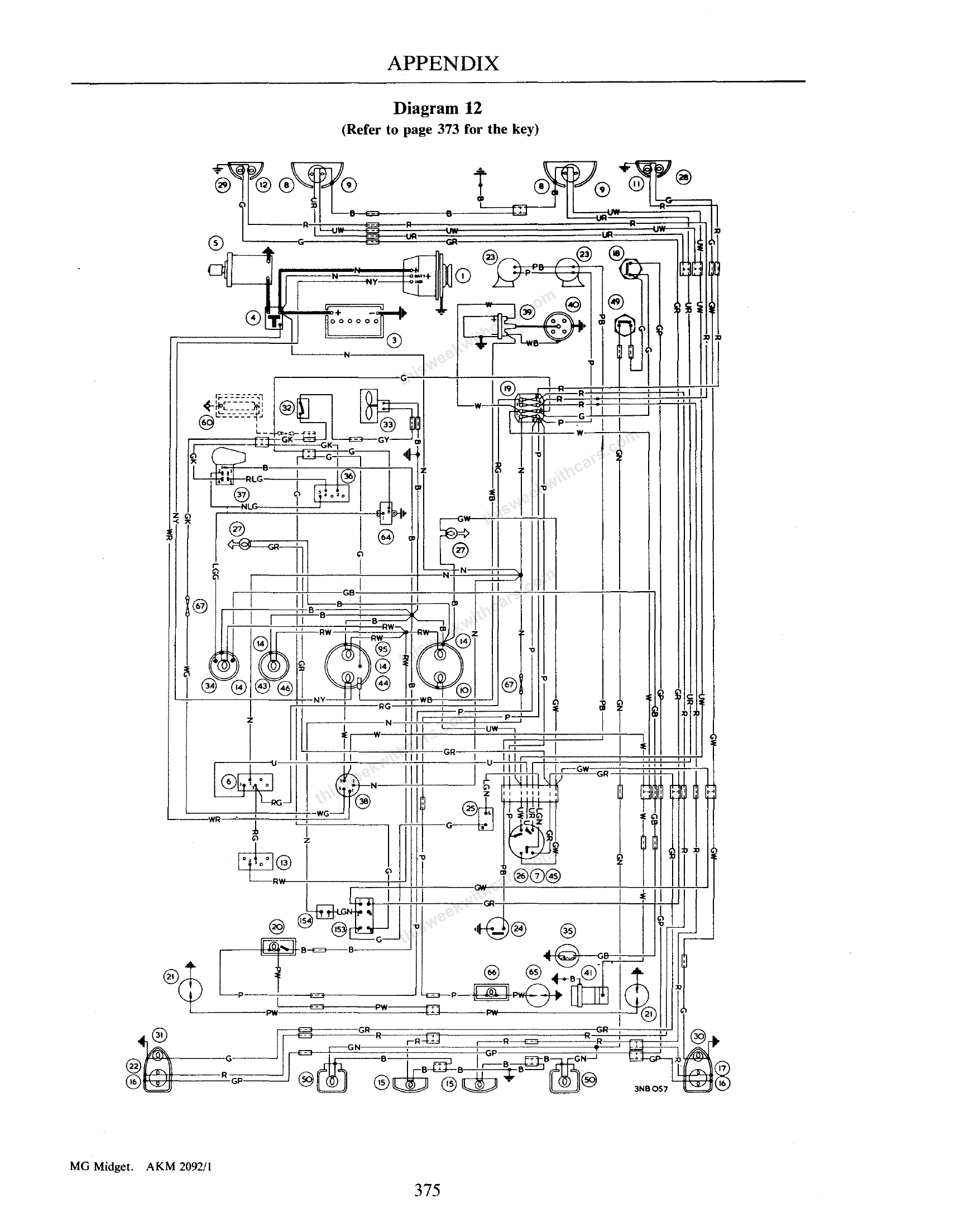

Diagram 12

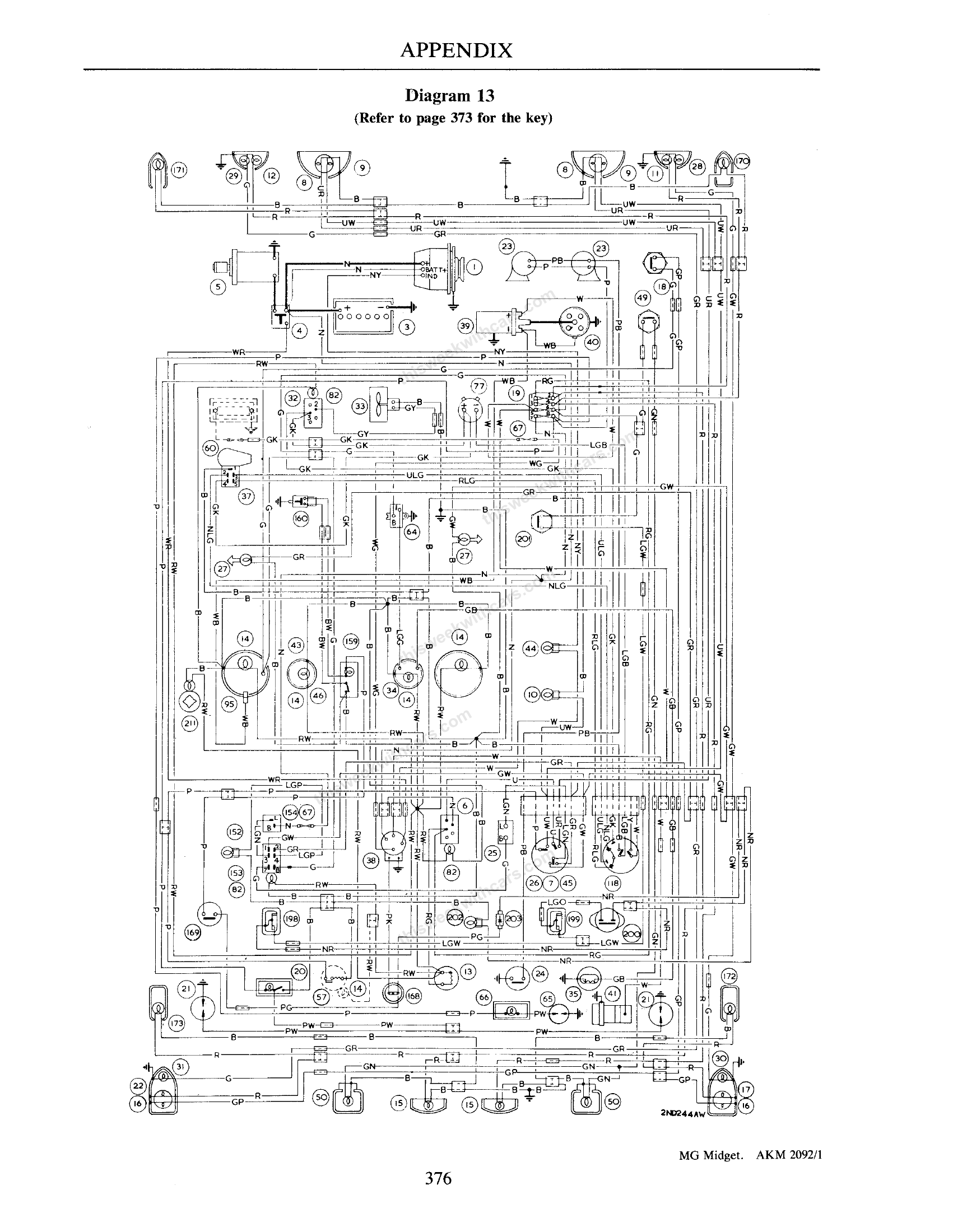

Diagram 13

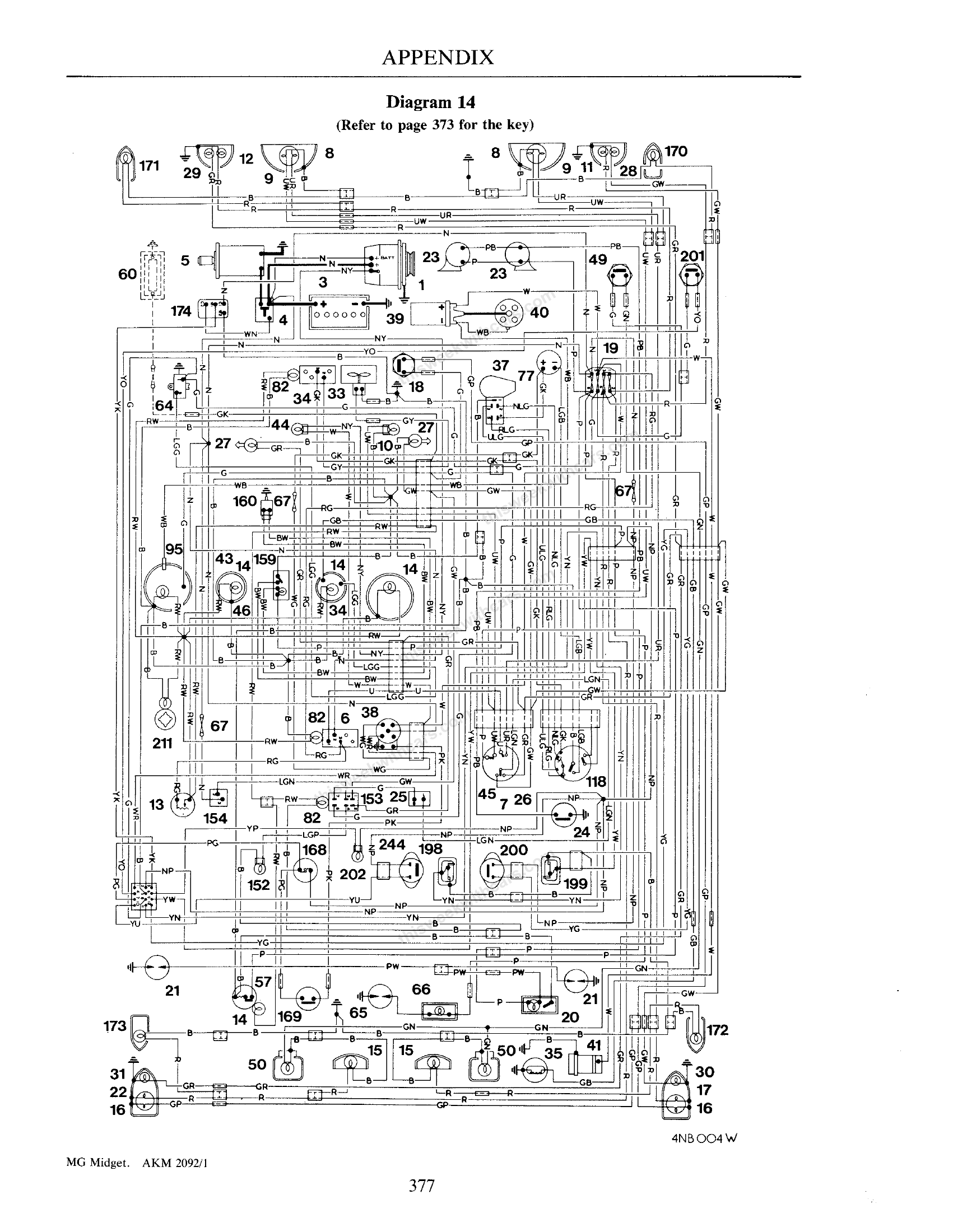

Diagram 14
