Wiring Diagrams

Workshop Manual Wiring Diagrams — Workshop Manual

Complete set of 18 factory wiring diagrams from the MGB Workshop Manual, covering all variants.

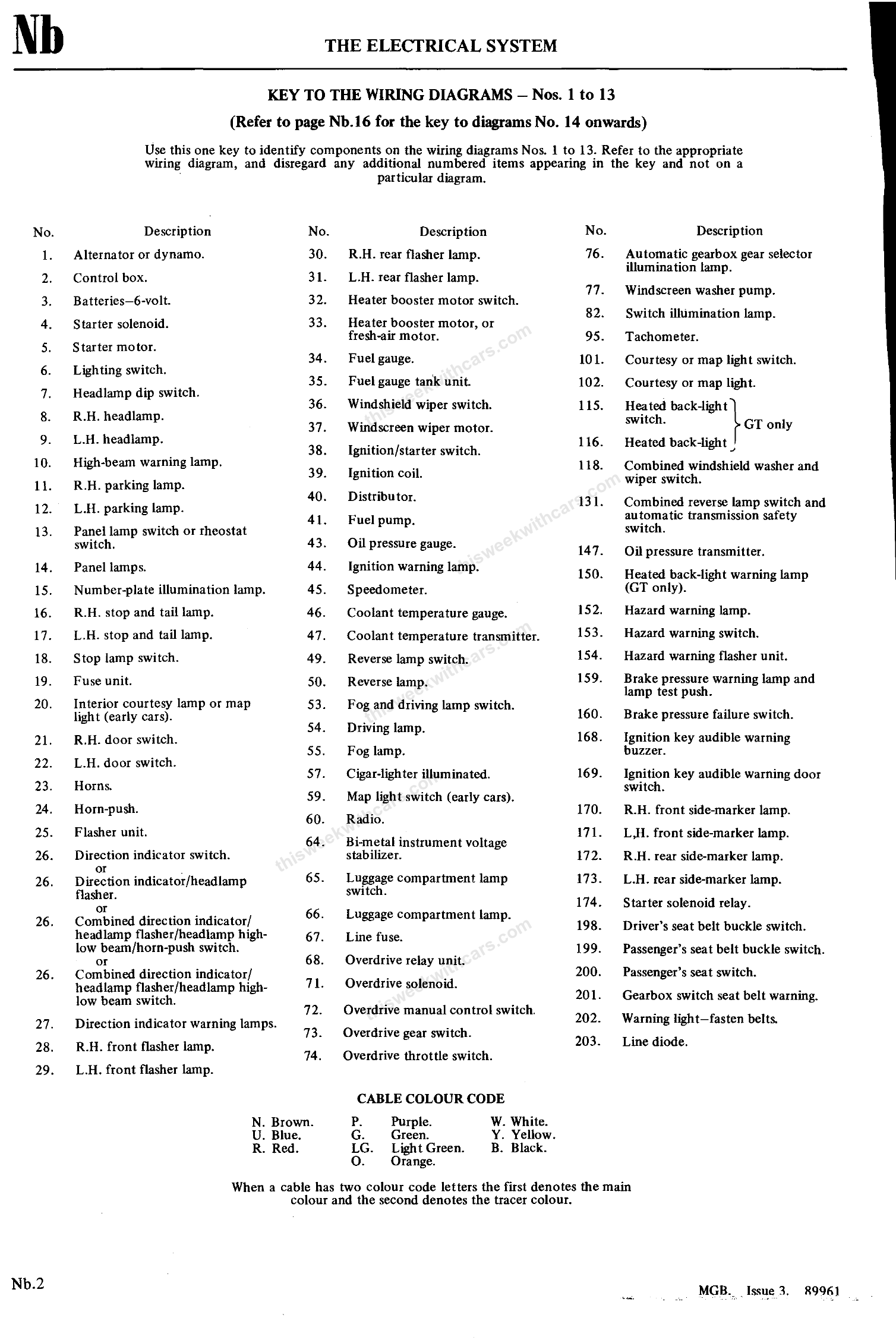

Key to Wiring Diagrams 1–13

---

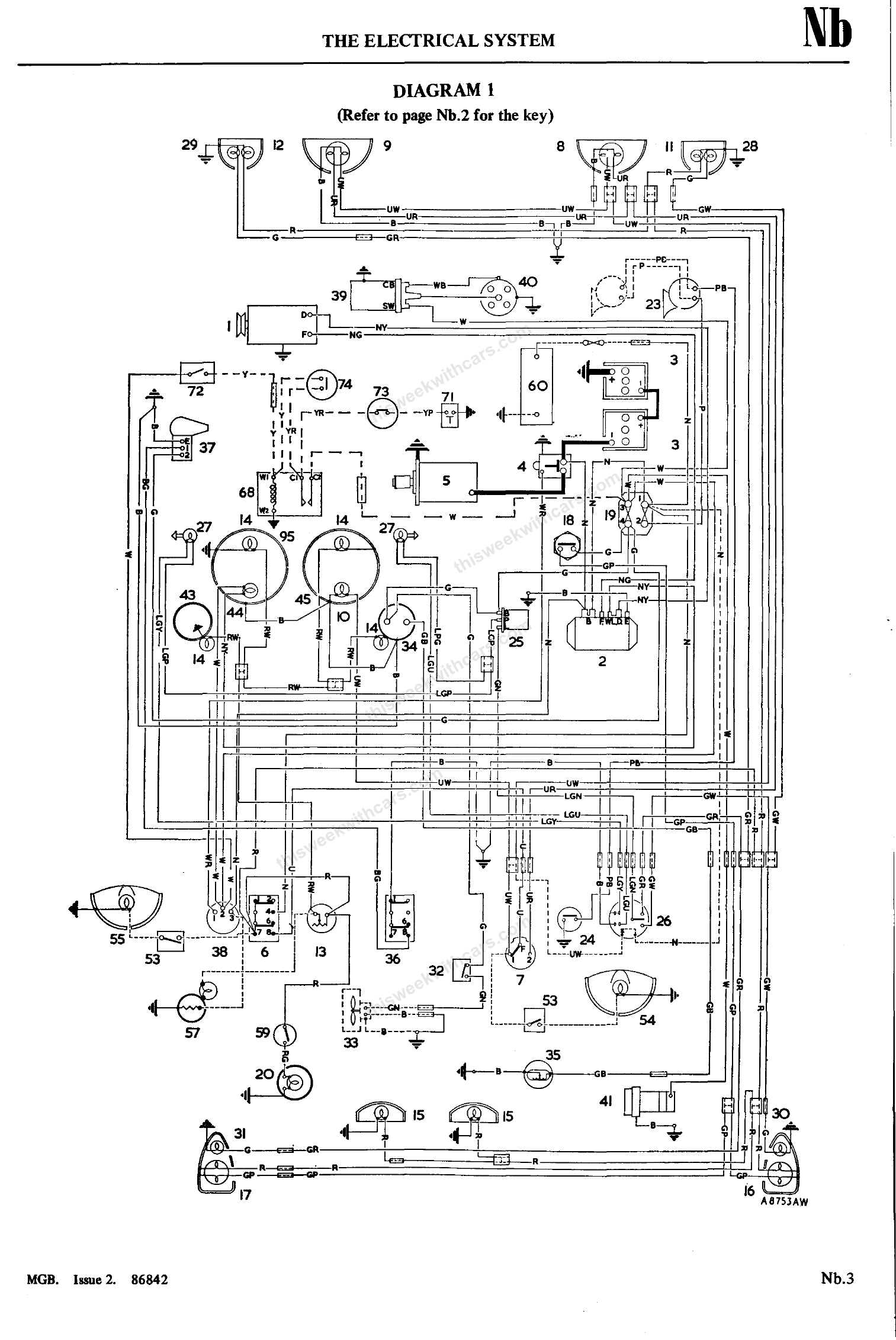

Diagram 1

---

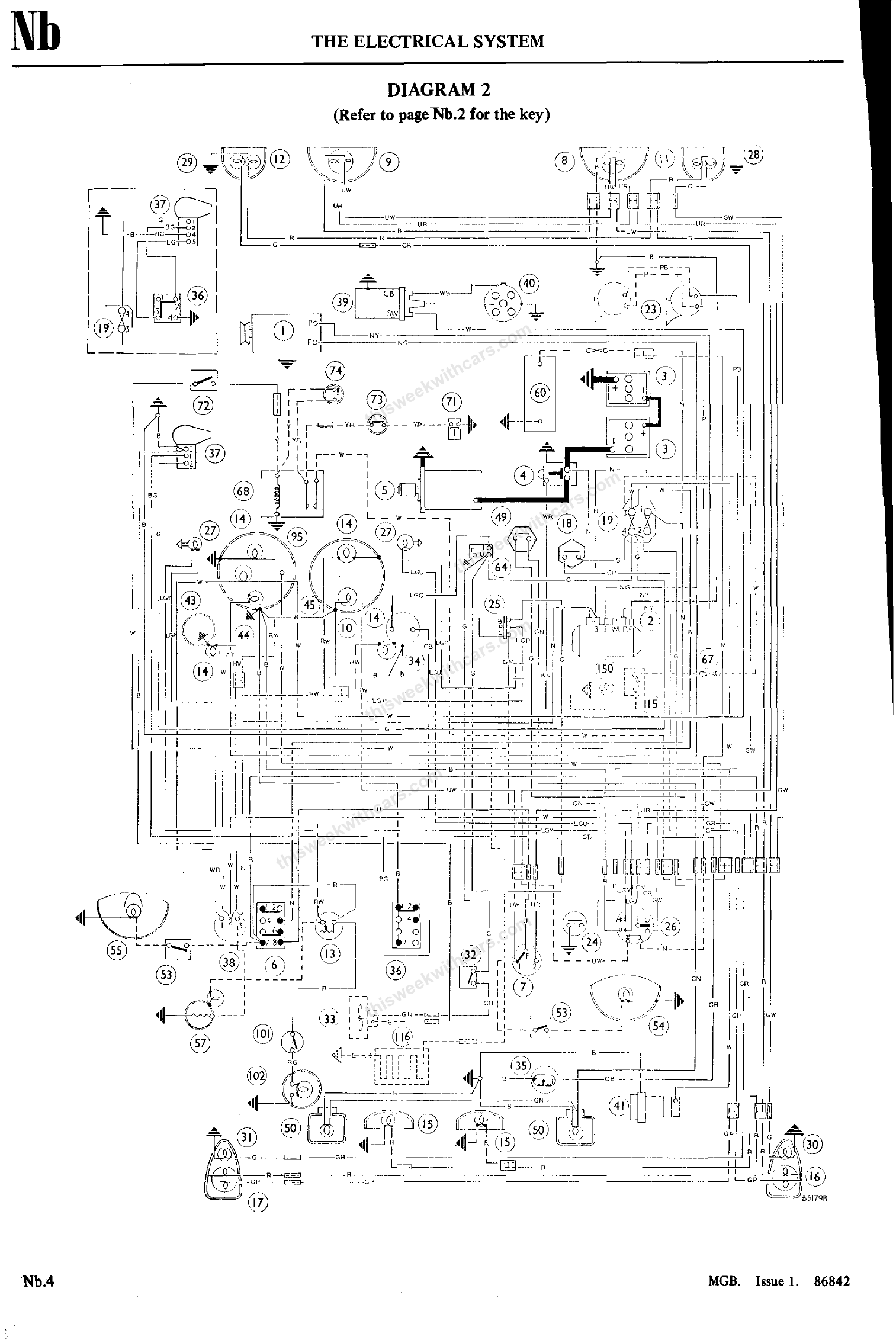

Diagram 2

---

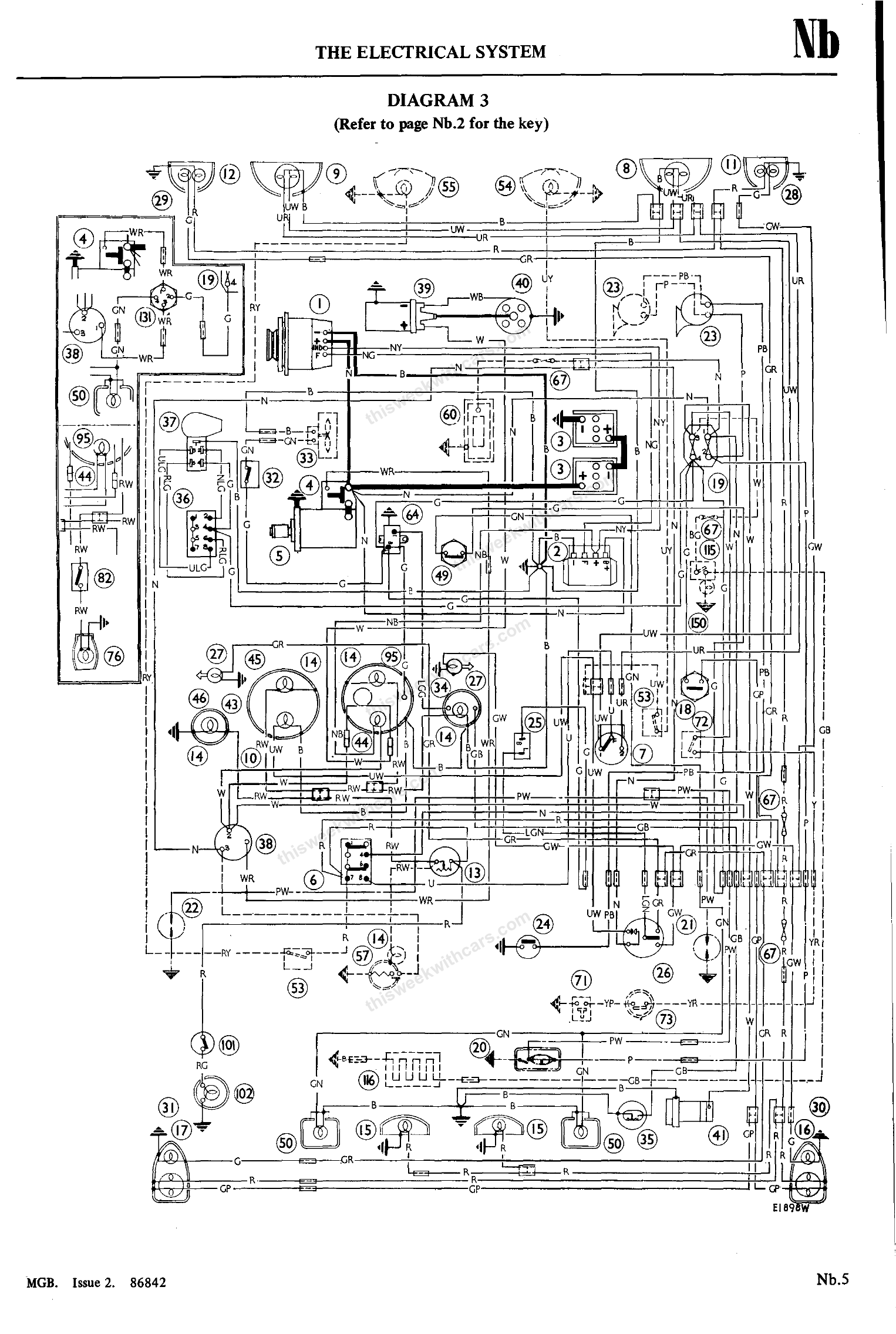

Diagram 3

---

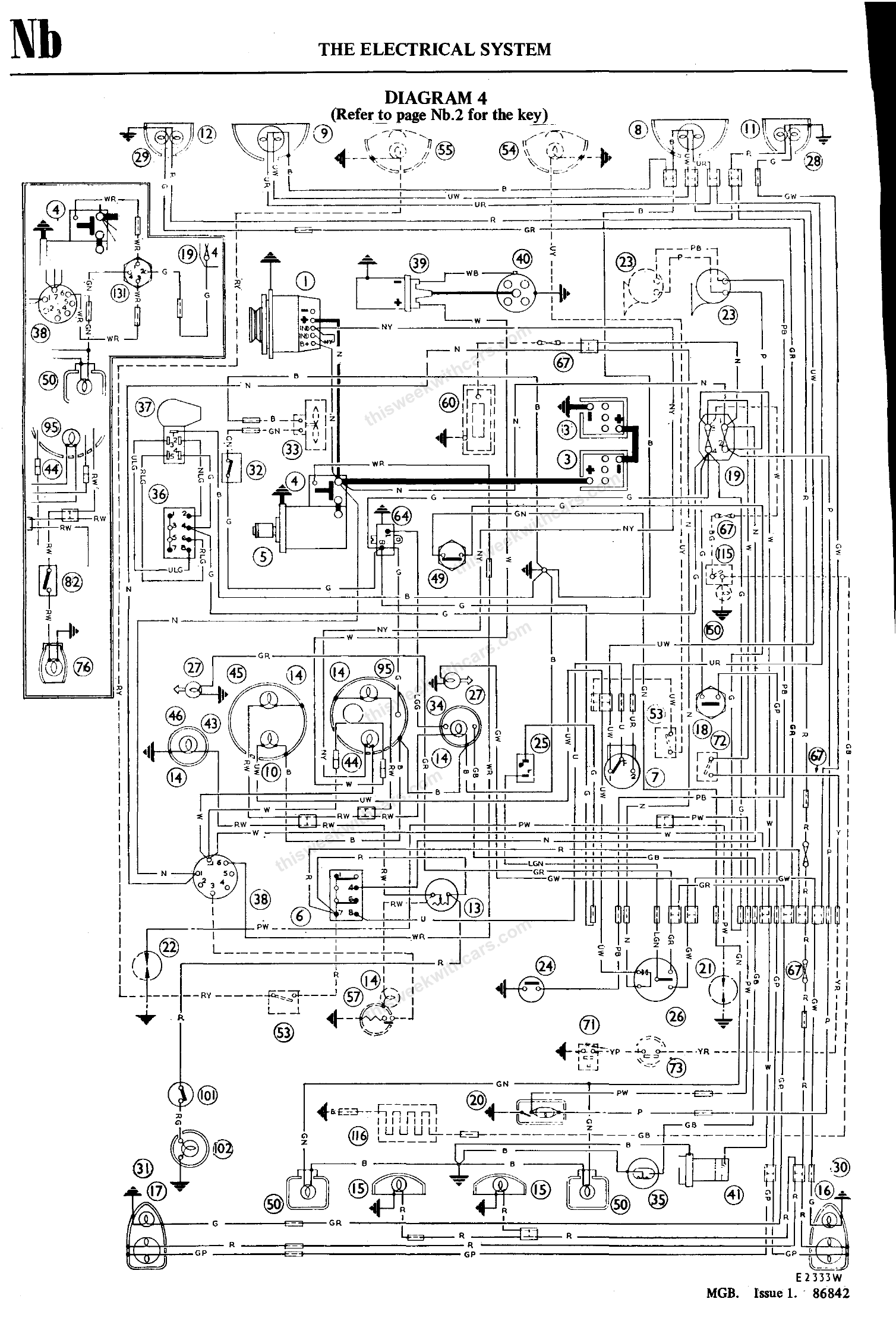

Diagram 4

---

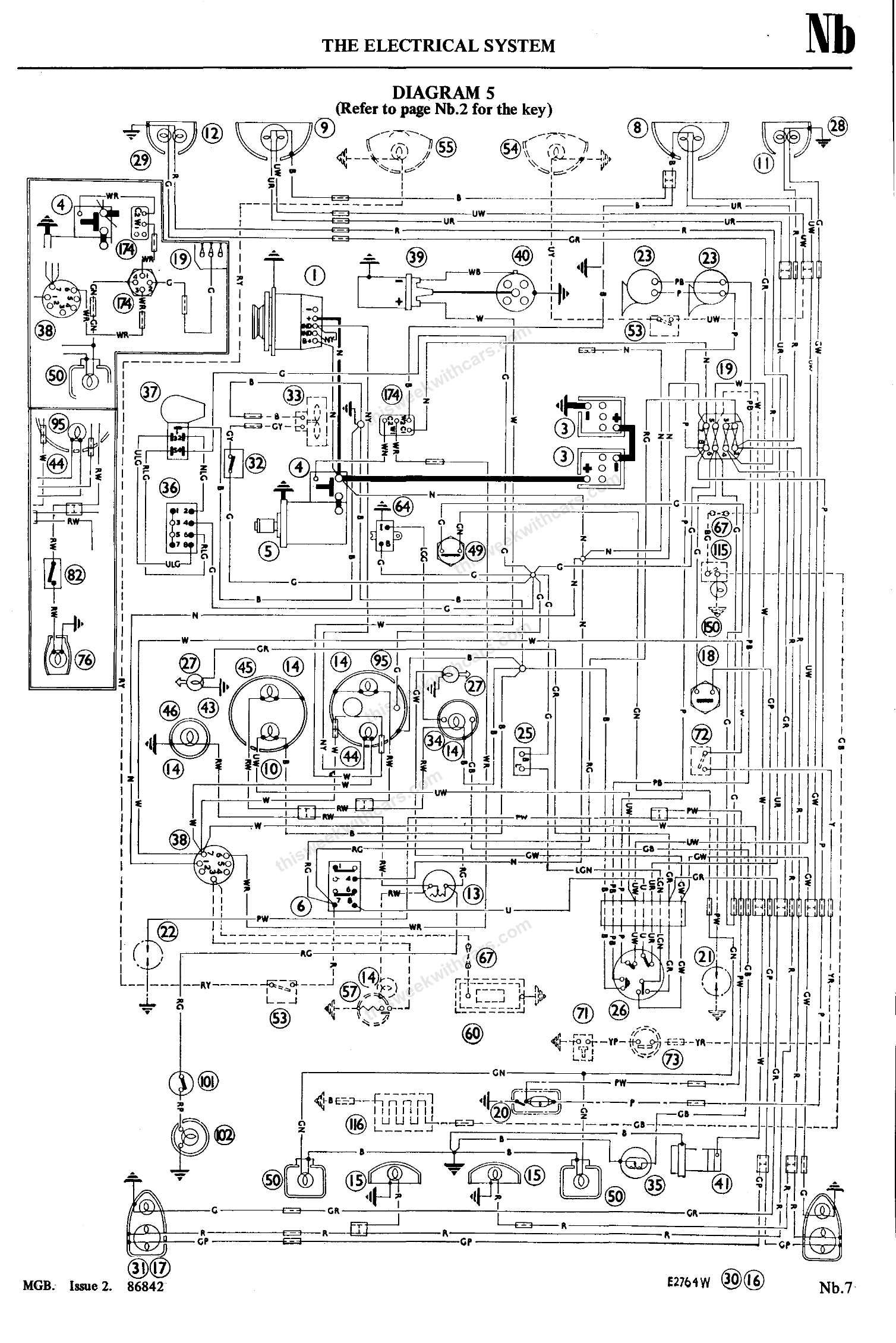

Diagram 5

---

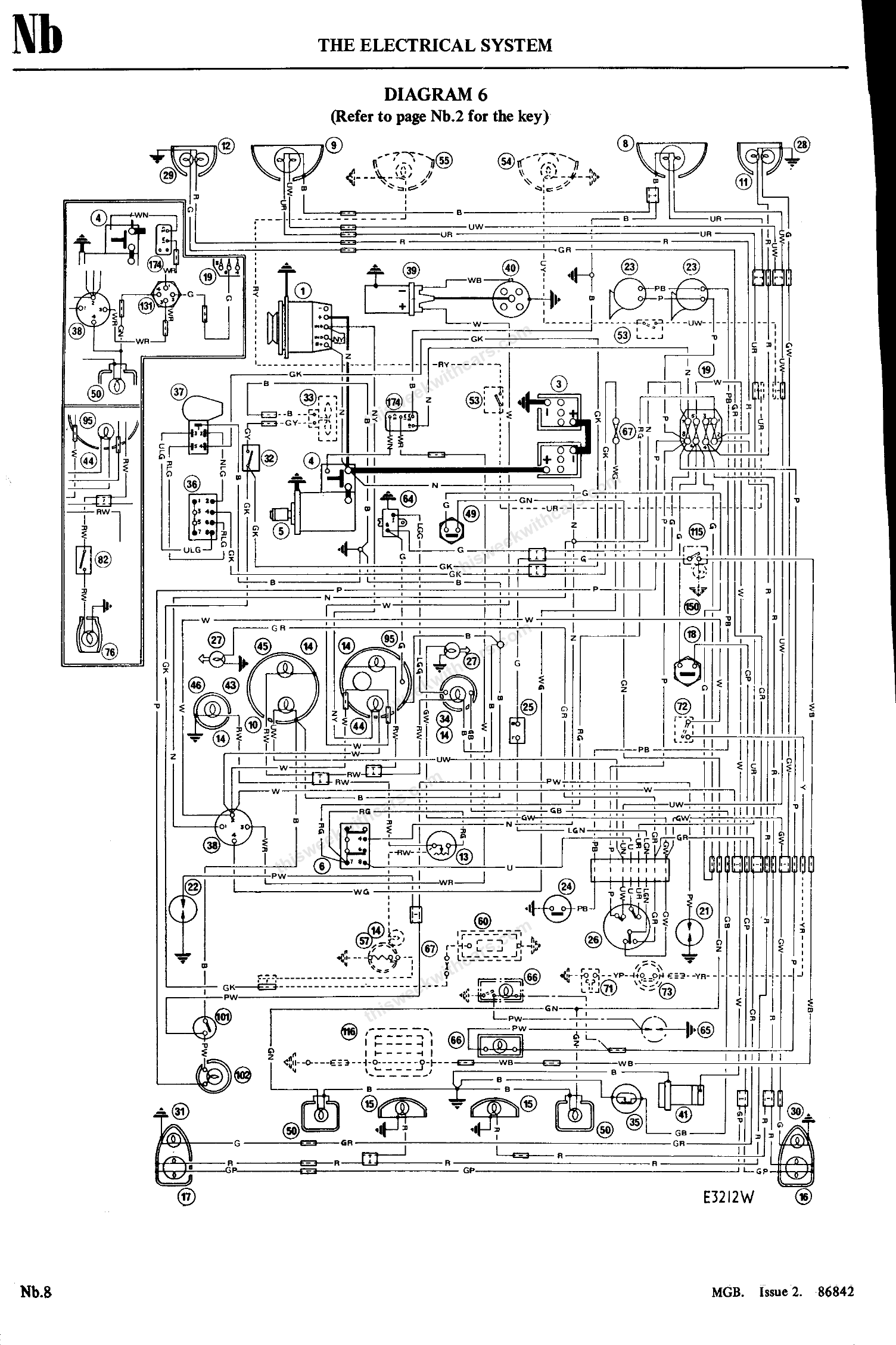

Diagram 6

---

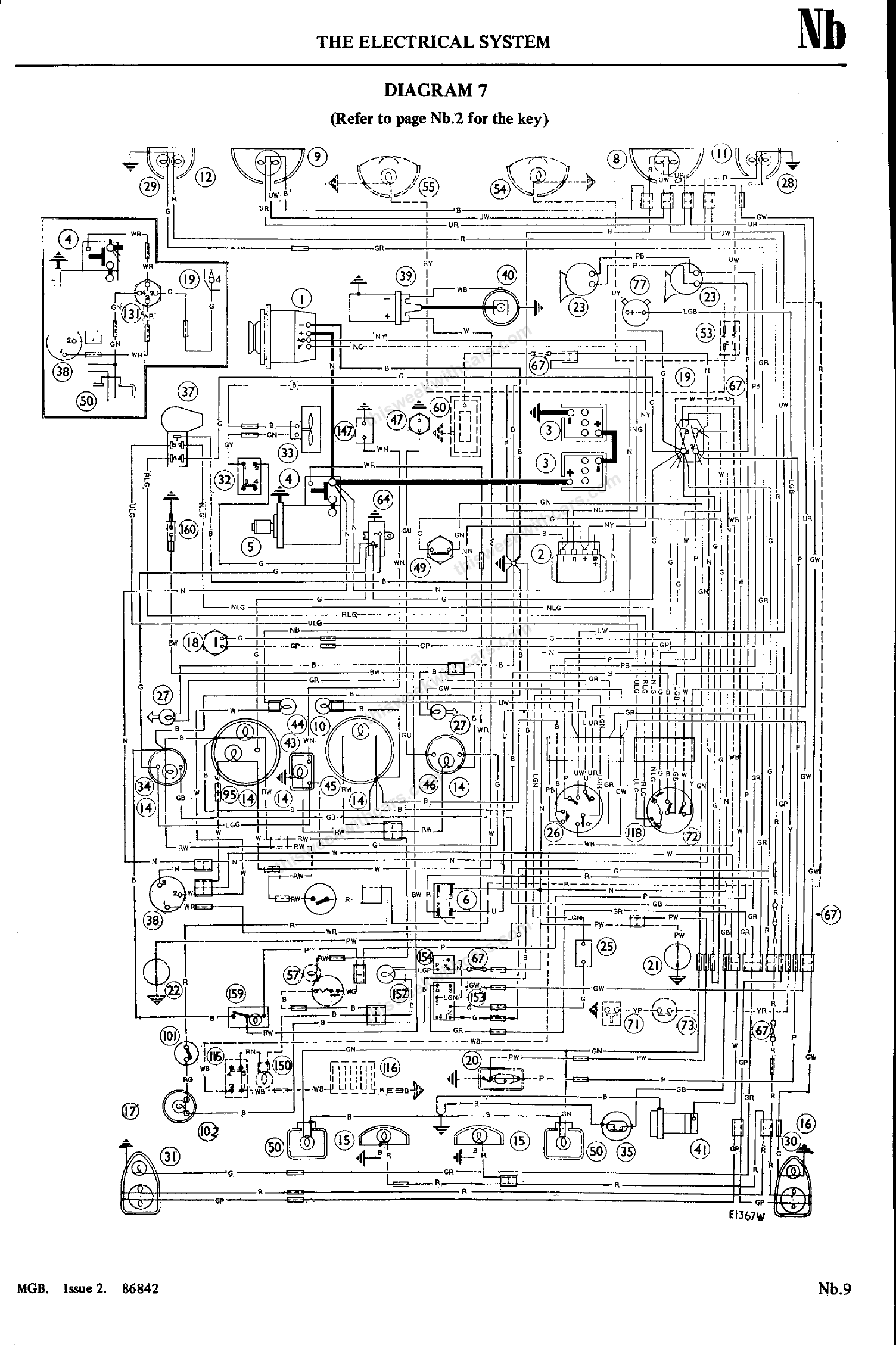

Diagram 7

---

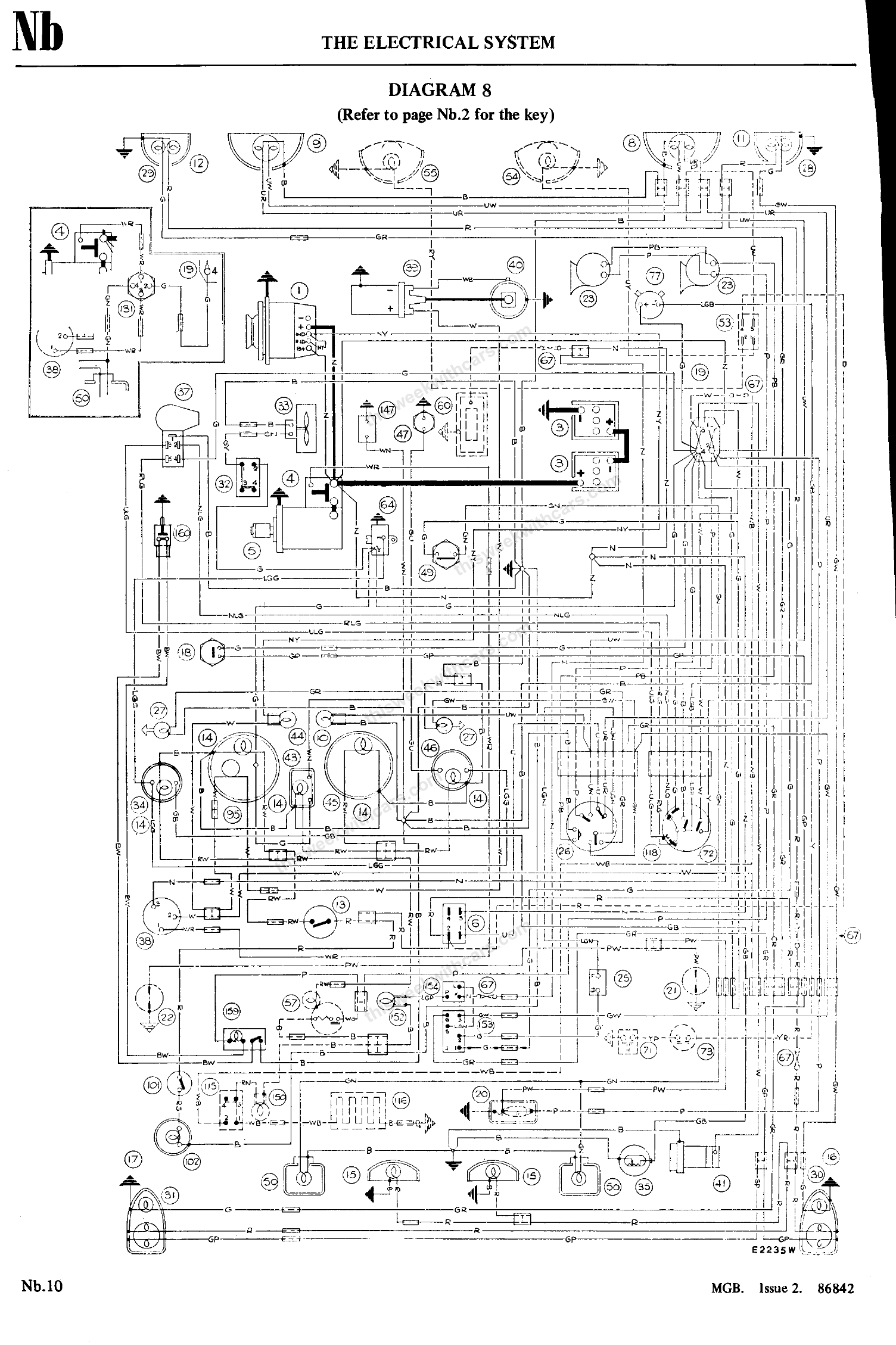

Diagram 8

---

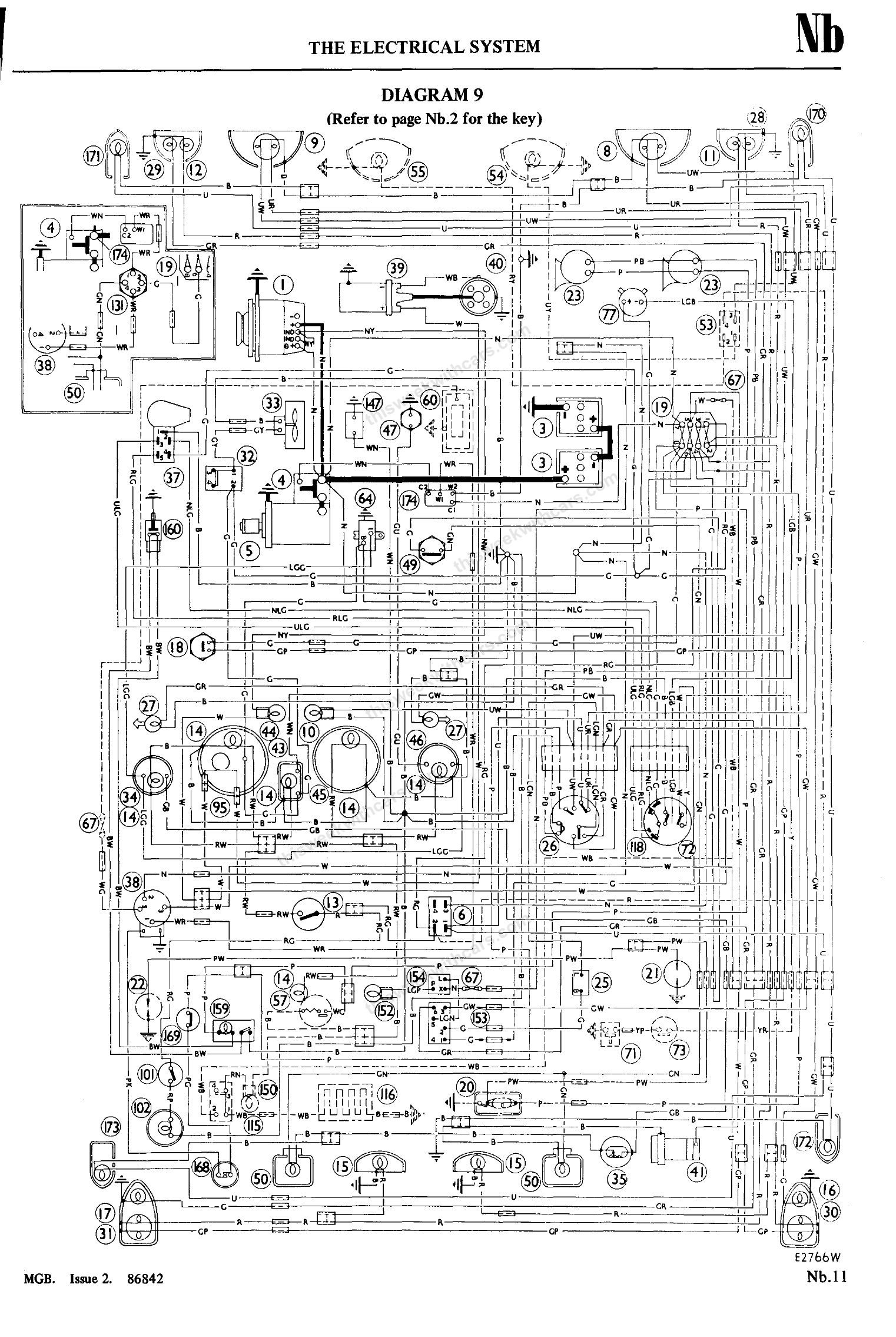

Diagram 9

---

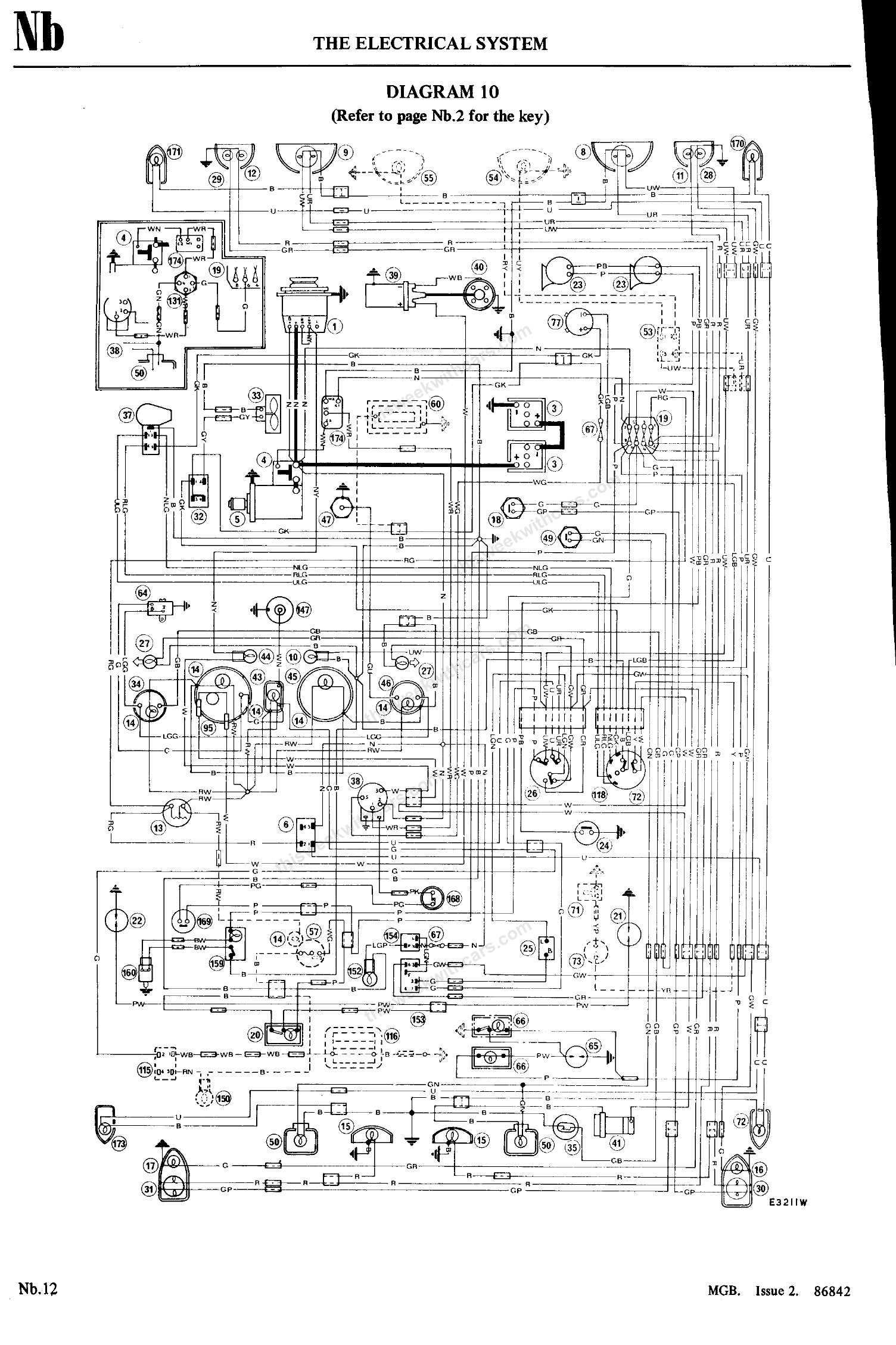

Diagram 10

---

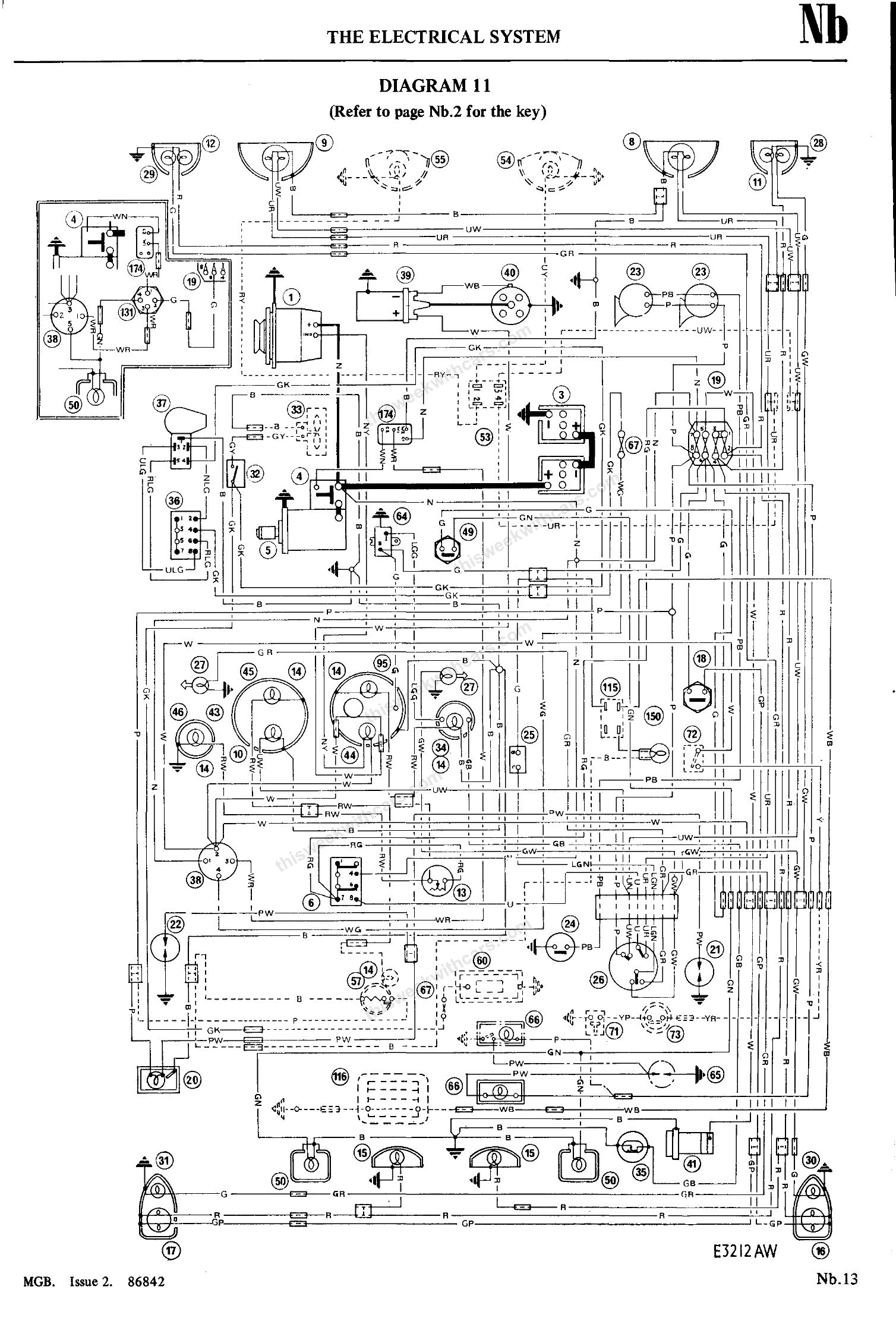

Diagram 11

---

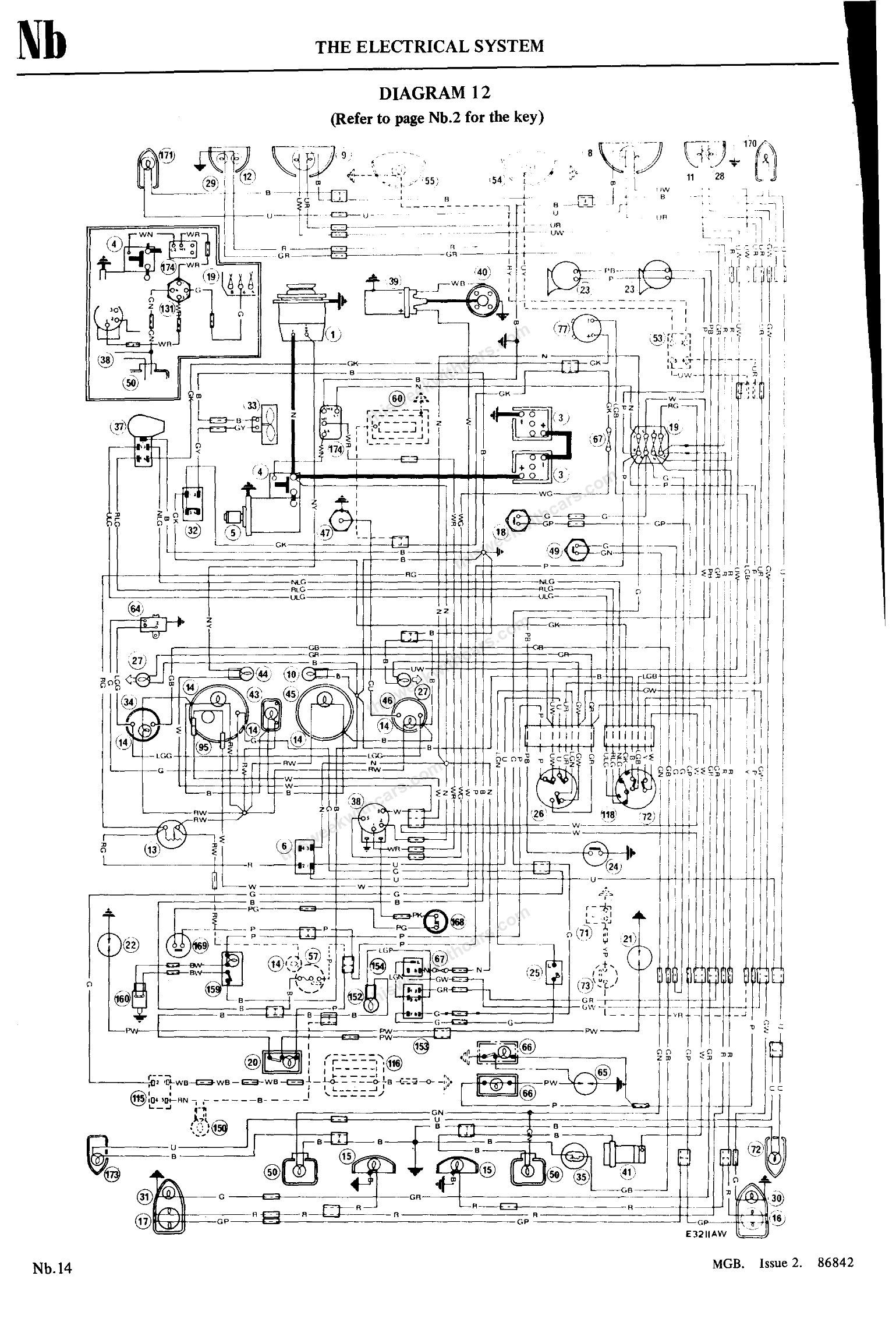

Diagram 12

---

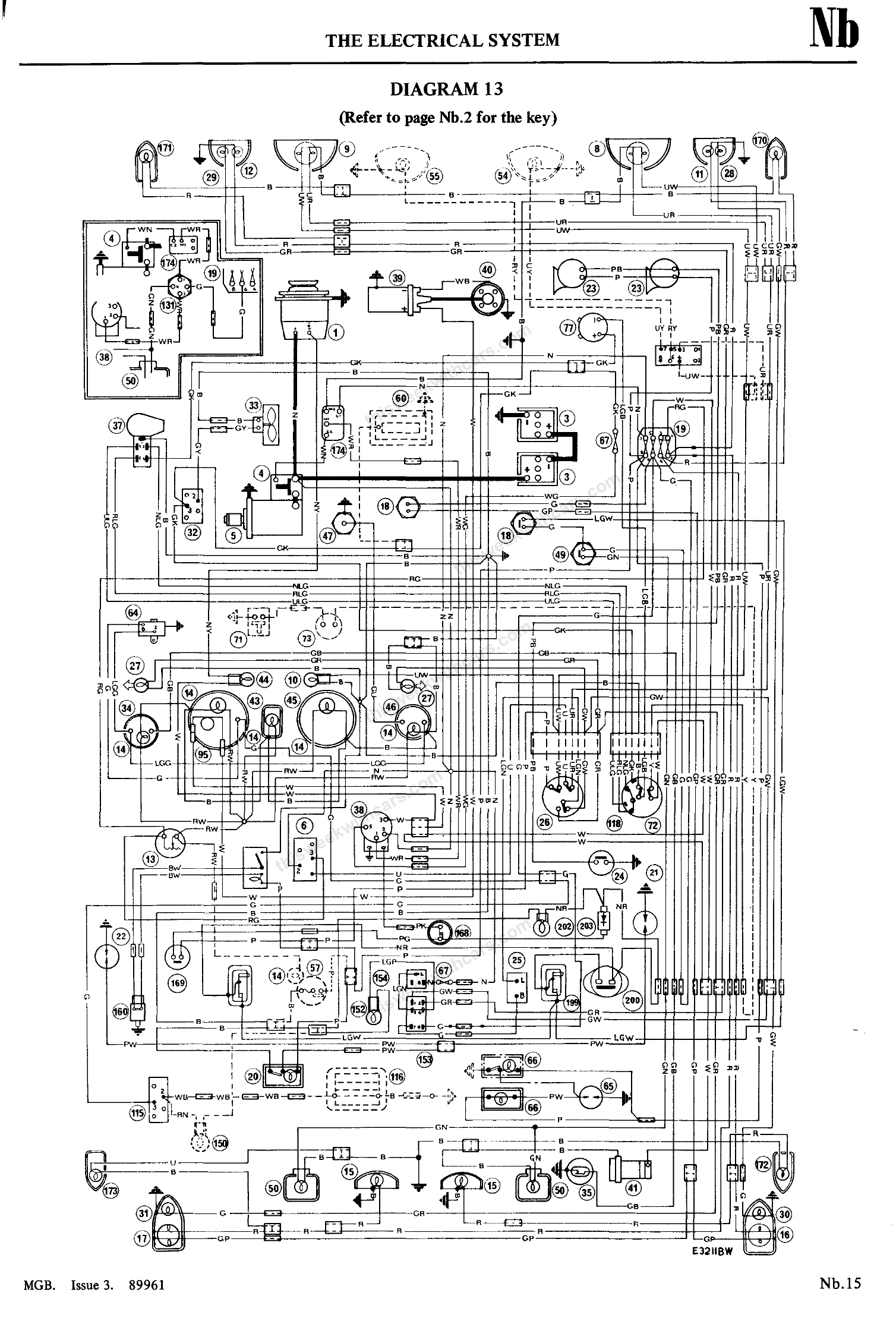

Diagram 13

---

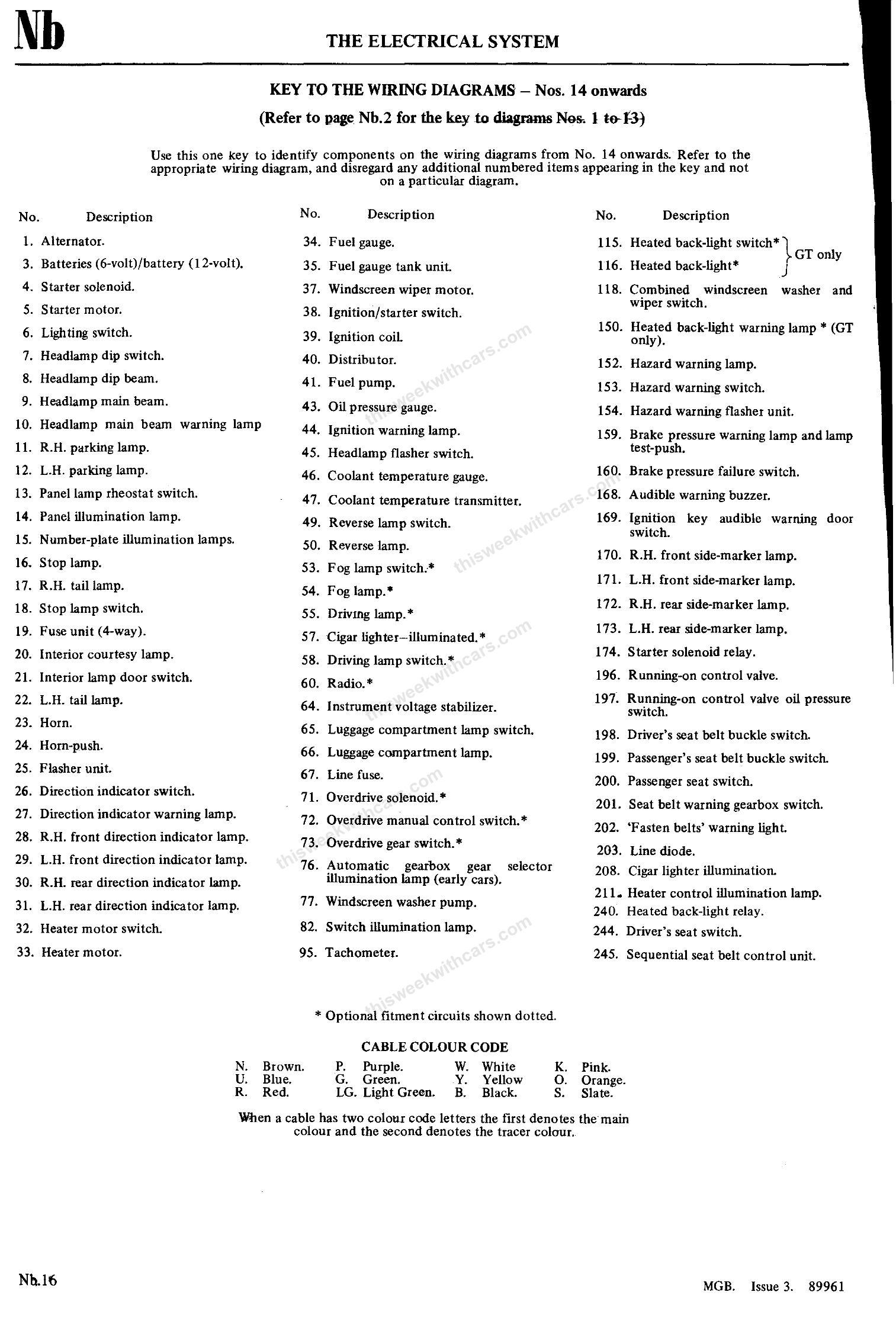

Key to Wiring Diagrams 14 onwards

---

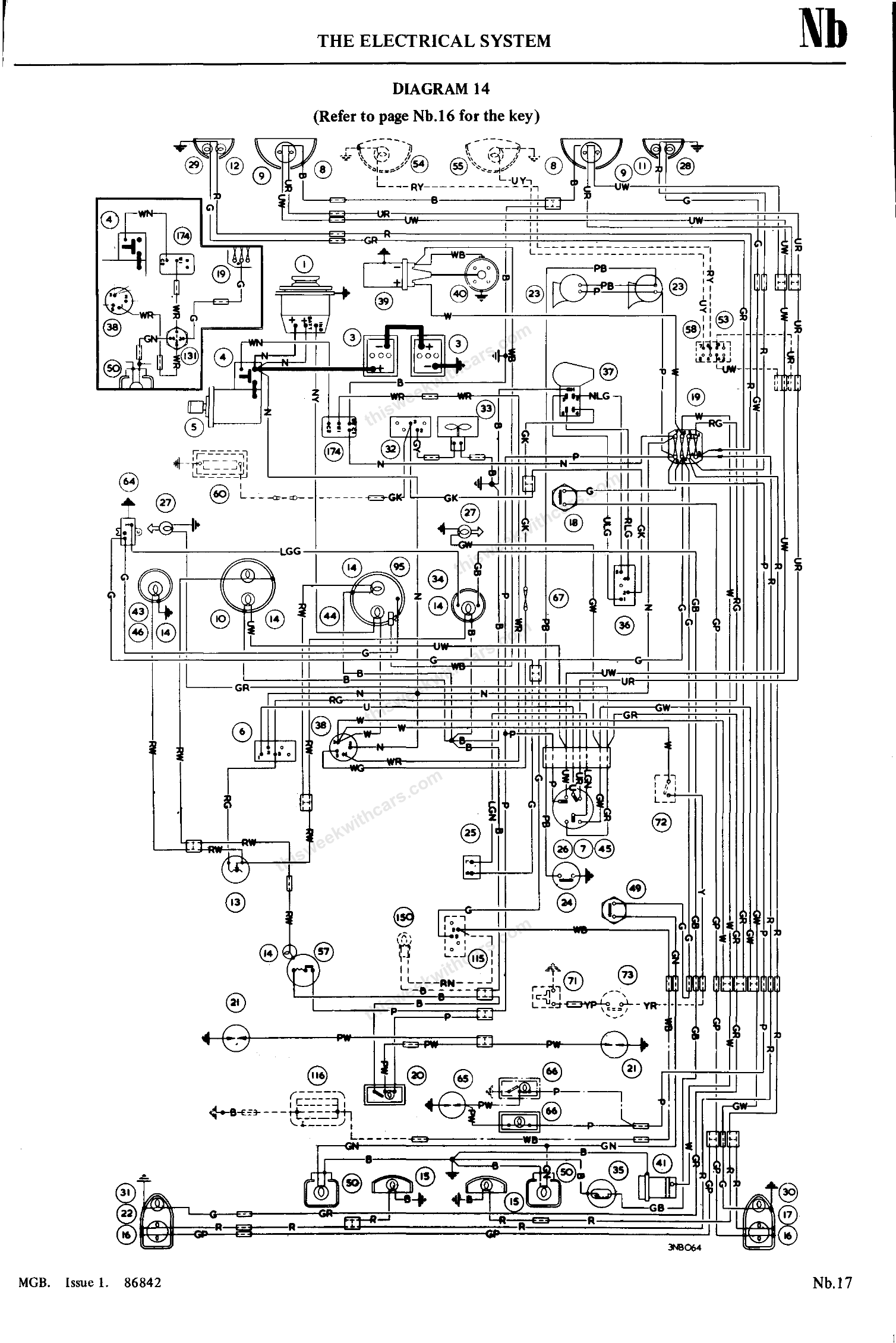

Diagram 14

---

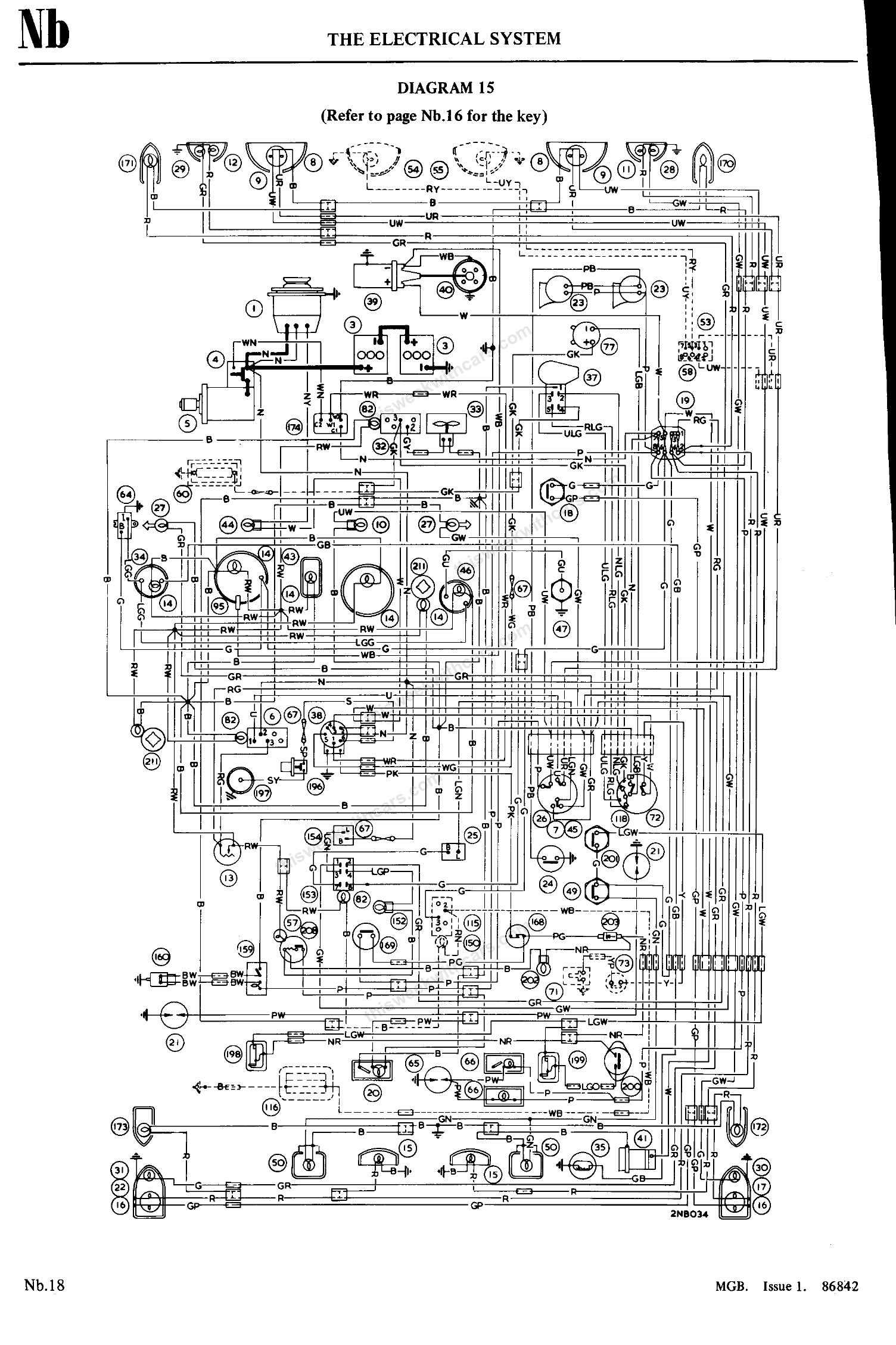

Diagram 15

---

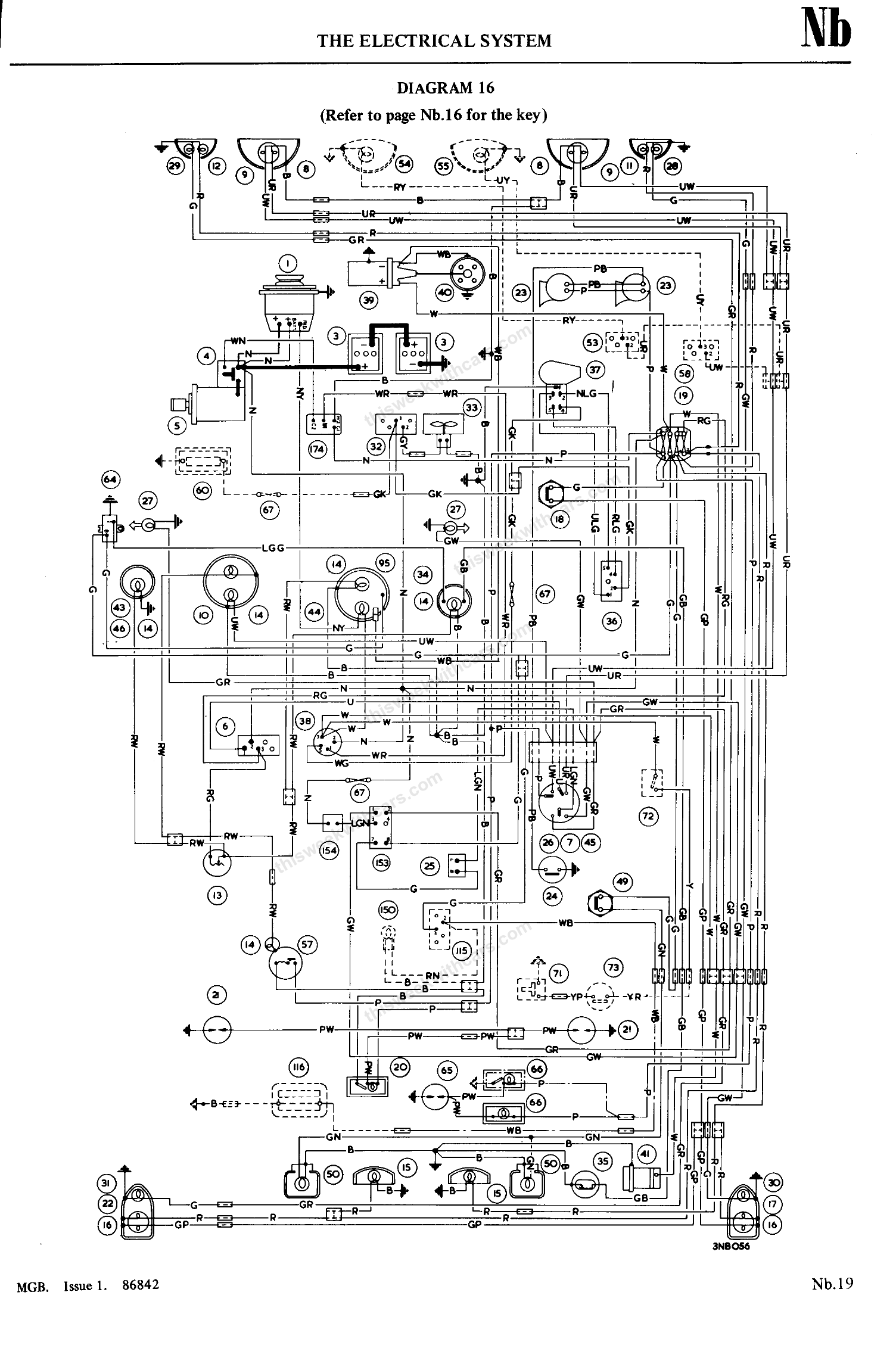

Diagram 16

---

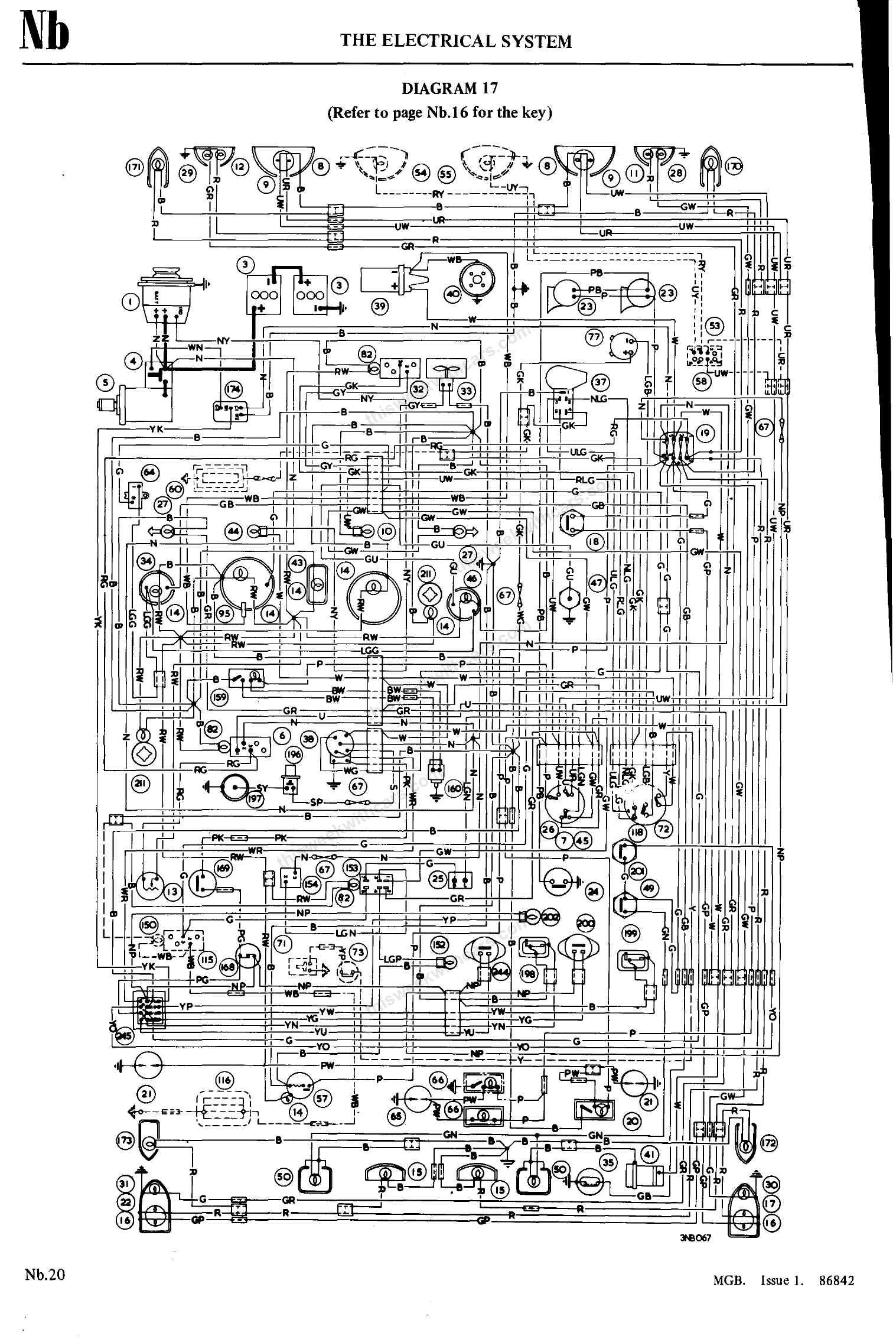

Diagram 17

---

Diagram 18

---

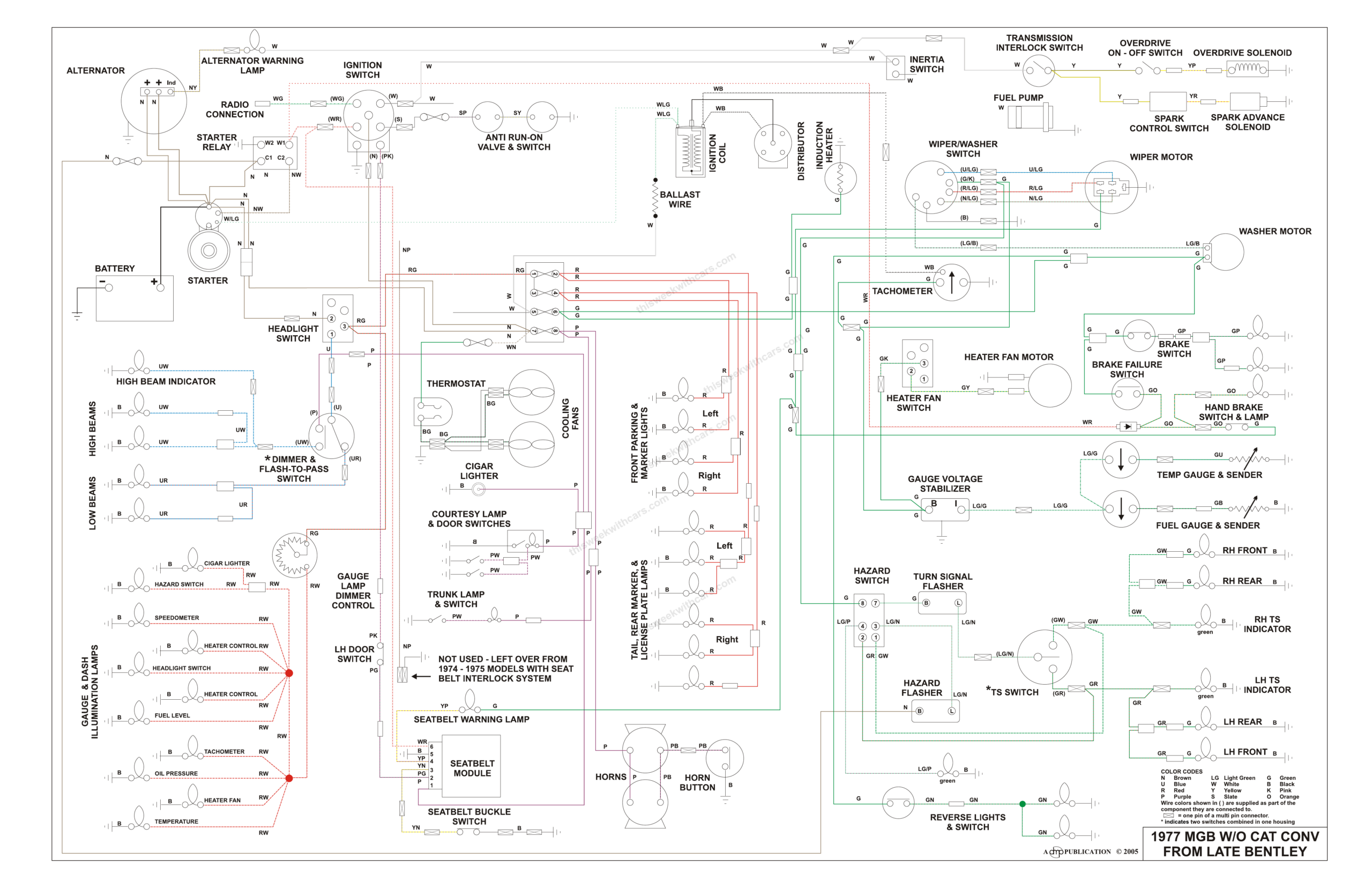

MGB Color Wiring Diagram — Late Model (Bentley)

1977 MGB without catalytic converter, from late Bentley manual. Click the image to view full size.
