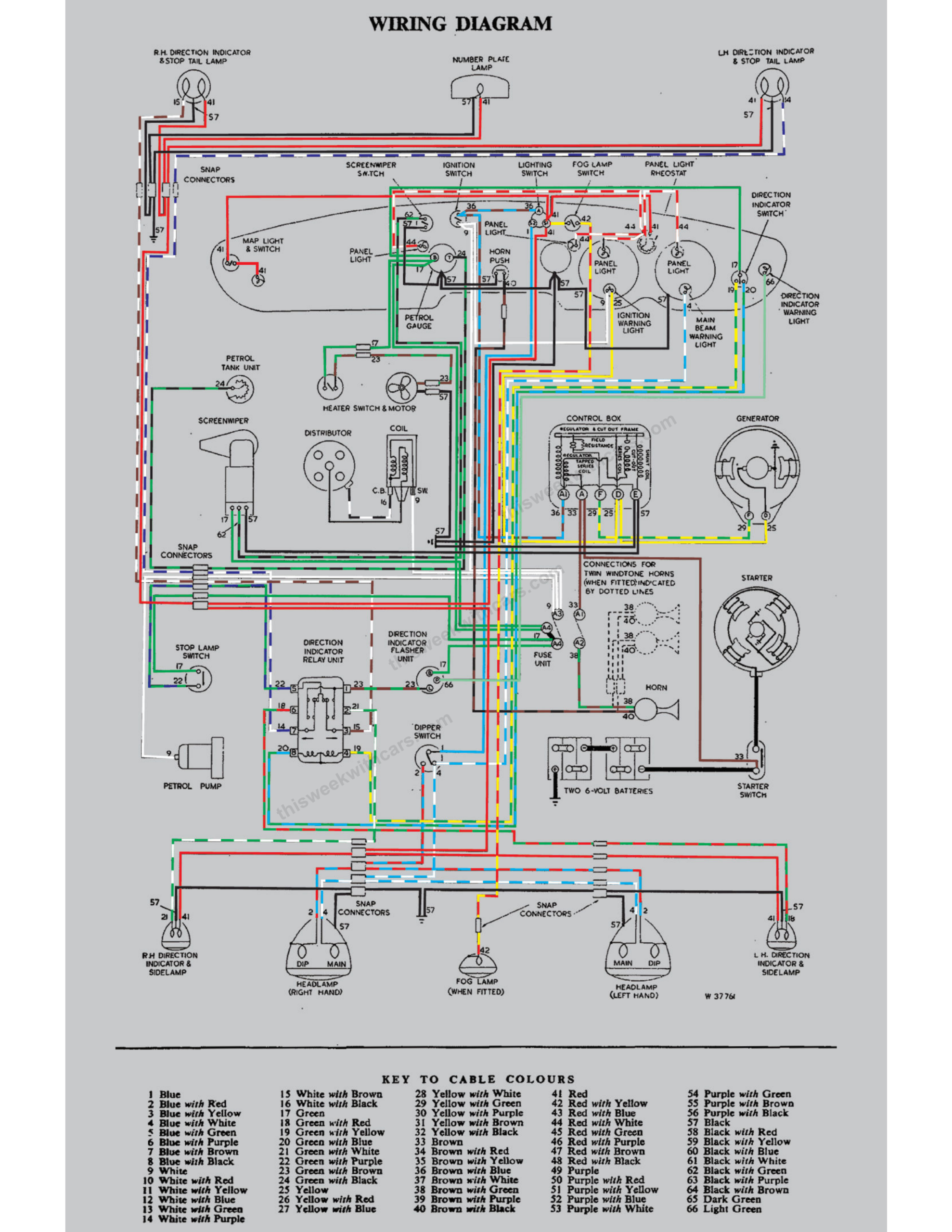

MGA 1500 Wiring Diagram
Color wiring diagram for the MGA 1500 with key to cable colours. Click any image to view full size.

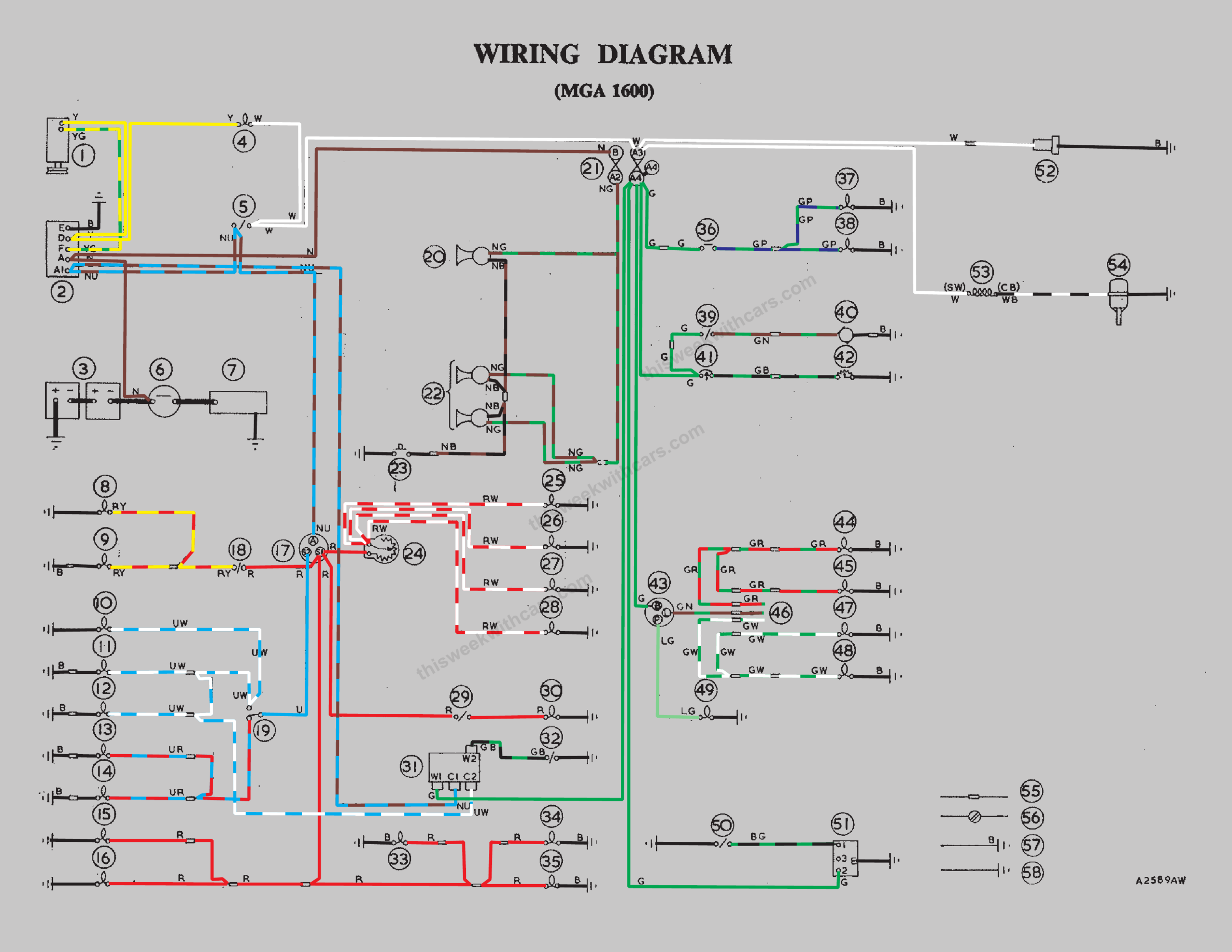

MGA 1600 Wiring Diagram
Factory wiring diagram for the MGA 1600.

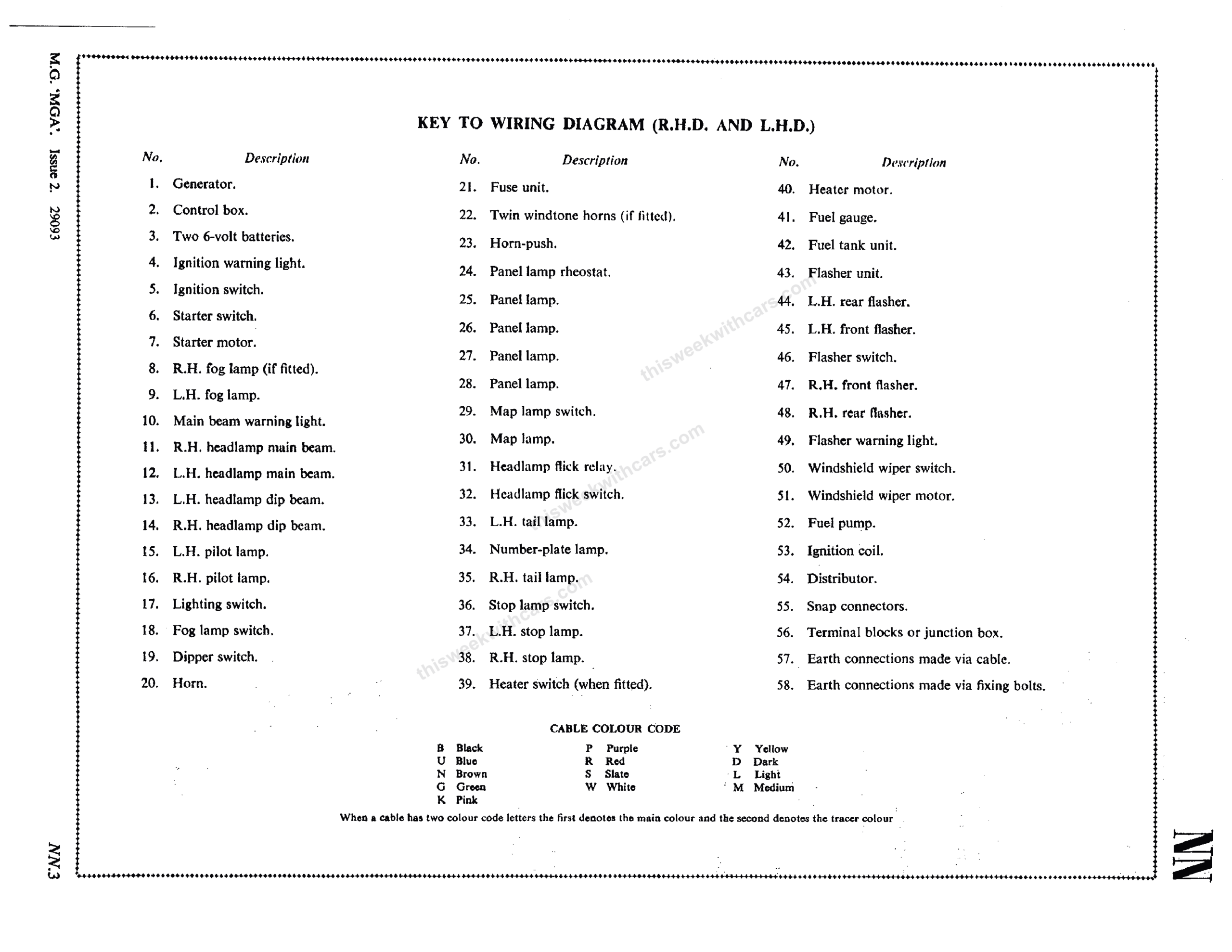

MGA 1600 Wiring Diagram Key
Key to wiring diagram for both R.H.D. and L.H.D. models, with cable colour code.
