Workshop Manual Wiring Diagrams
Wiring diagrams from the Jaguar XJ6 Series III 4.2 Electrical Guide (Publication S 57). Click any image to view full size.

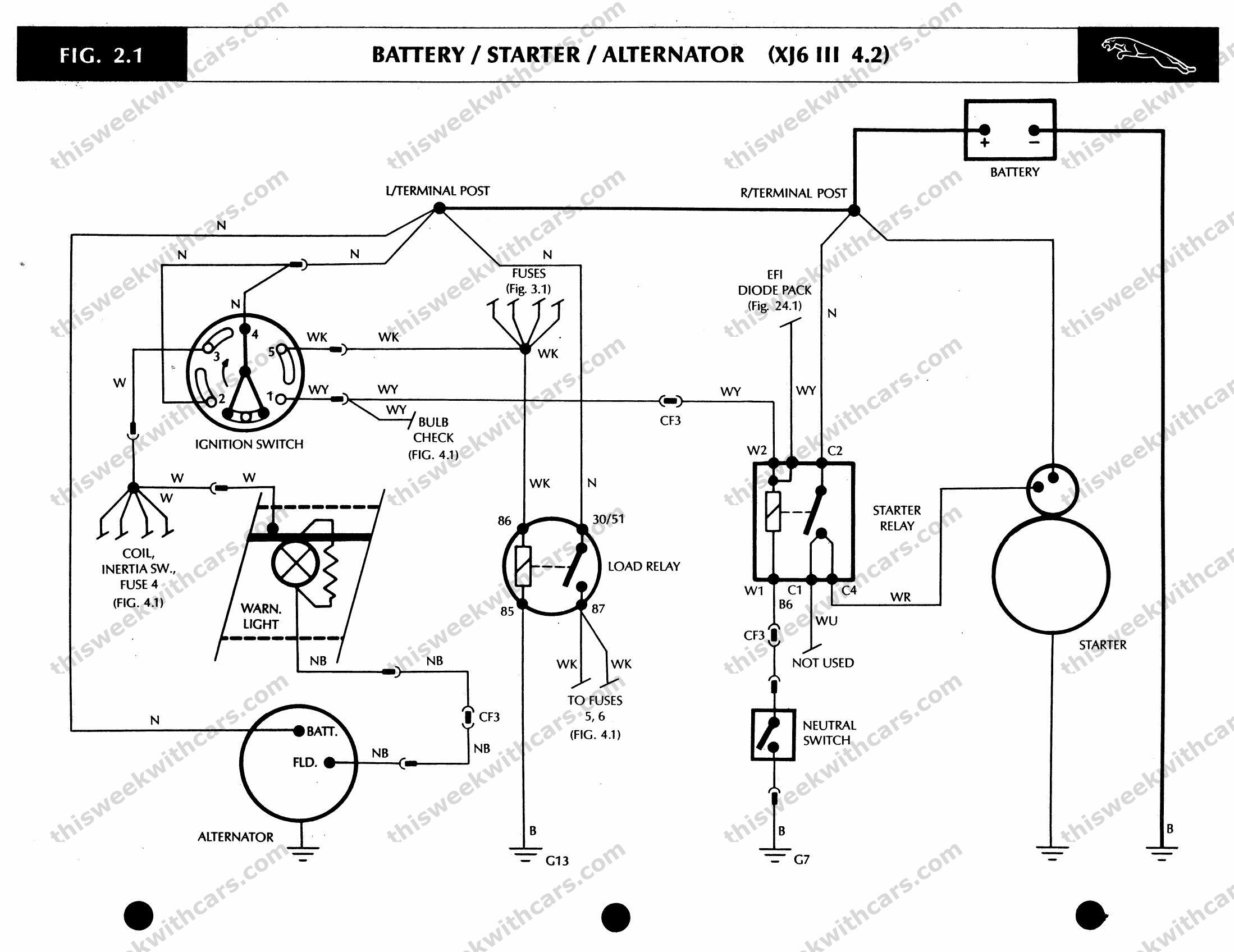

Fig 2.1 — Battery / Starter / Alternator
Battery, starter motor, and alternator circuit — XJ6 III 4.2

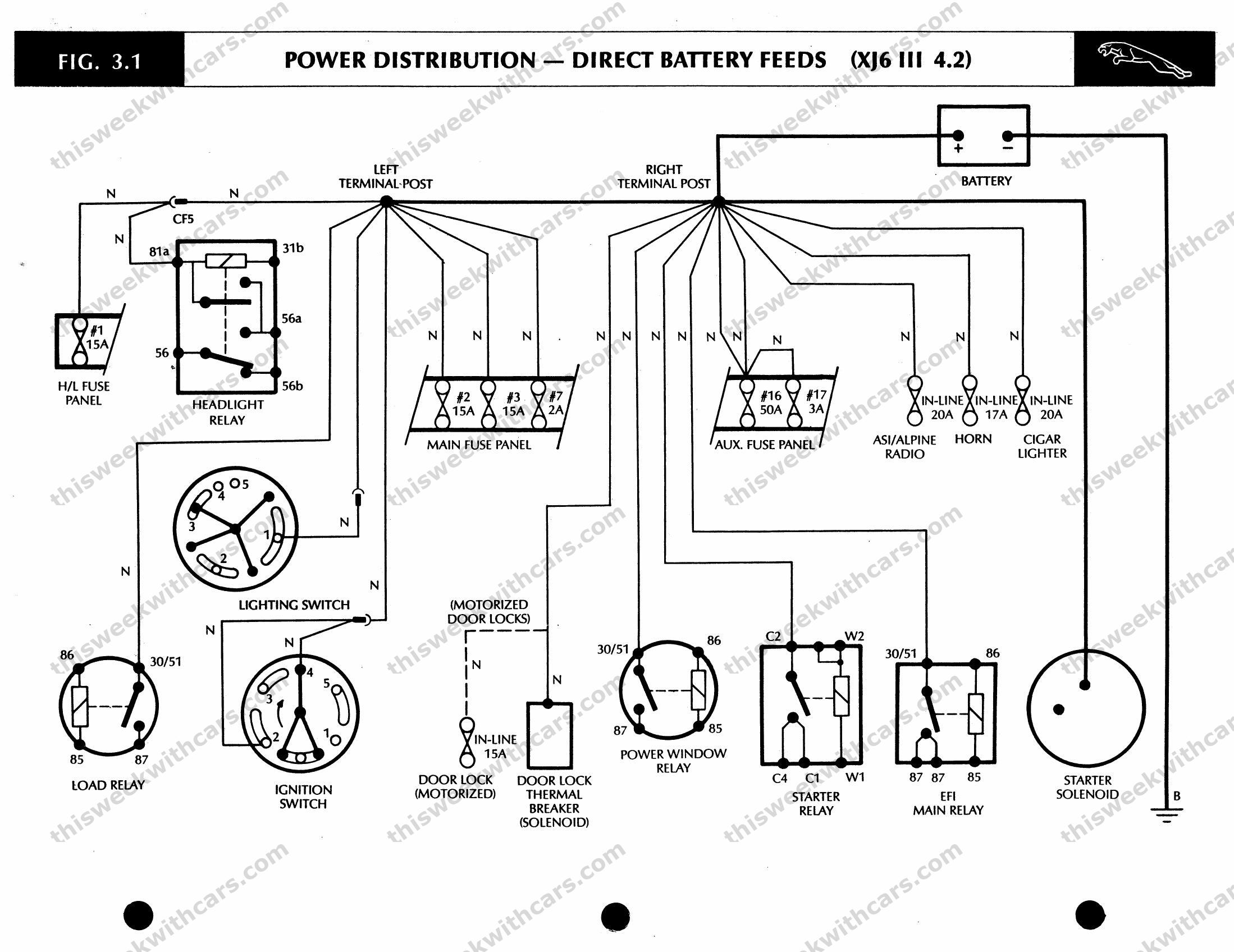

Fig 3.1 — Power Distribution — Direct Battery Feeds
Power distribution and direct battery feed circuits — XJ6 III 4.2

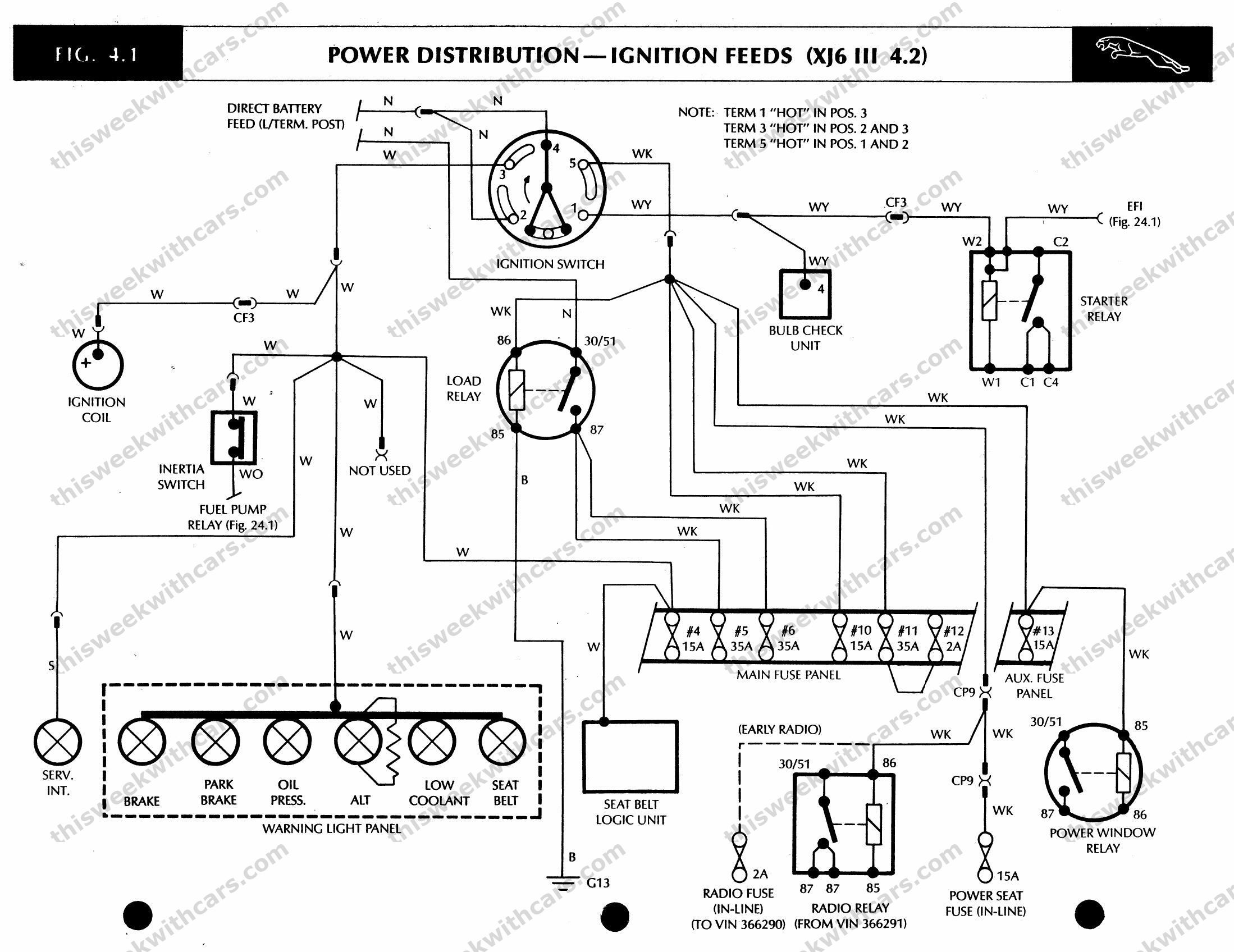

Fig 4.1 — Power Distribution — Ignition Feeds
Ignition feed power distribution, warning lights, and fuse panel — XJ6 III 4.2

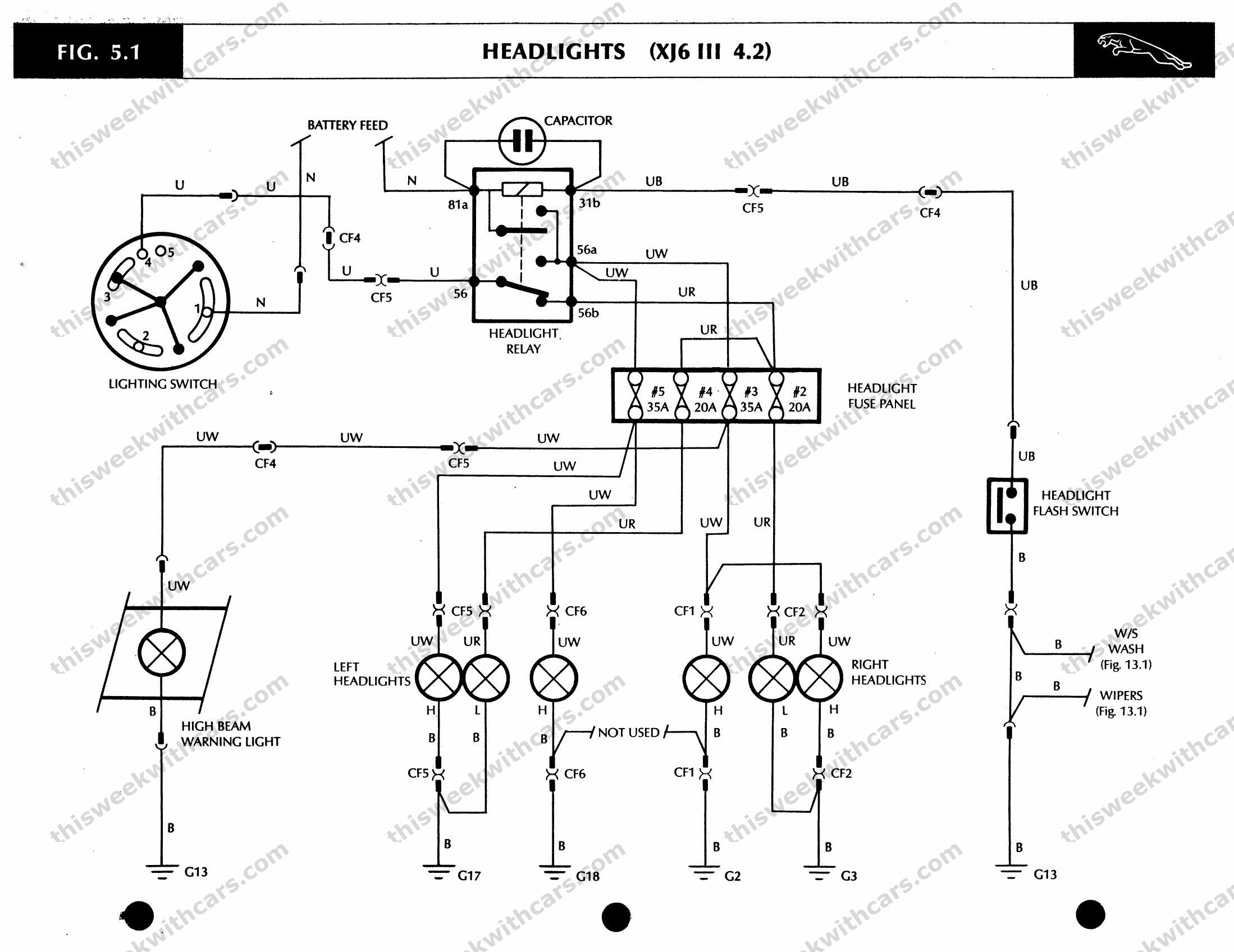

Fig 5.1 — Headlights
Headlight circuit with relay, fuse panel, and flash switch — XJ6 III 4.2
