Daimler 250 V8 — Wiring Diagrams
Diagrams from the Daimler 2½ Litre V8 Saloon Workshop Manual.

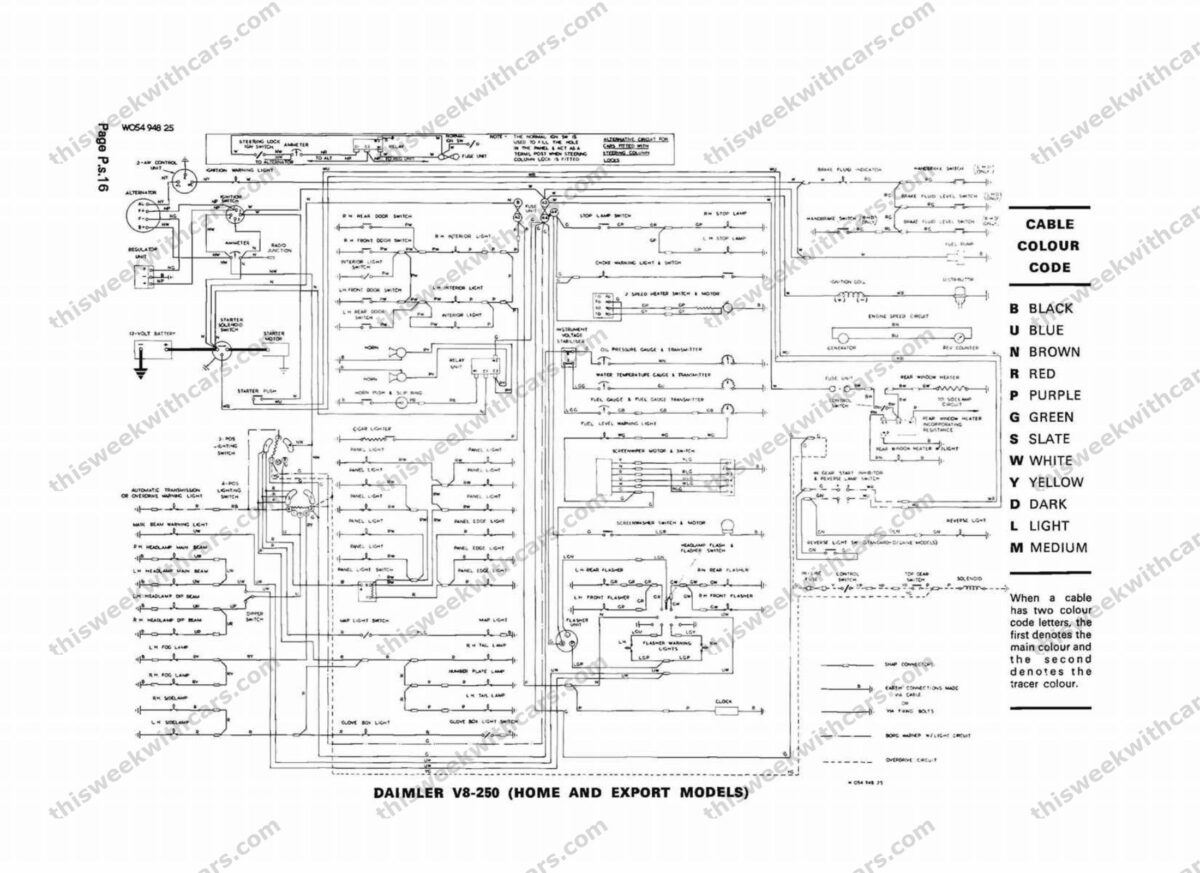

Workshop Manual Wiring Diagram
Daimler V8-250 (Home and Export Models) — Cable Colour Code included
